Free Network Upgrade

The capability of updating this screen remotely over the internet is included at no extra cost. Just choose the software subscription package that suits yours needs so you can realise the benefits of our online content management system.

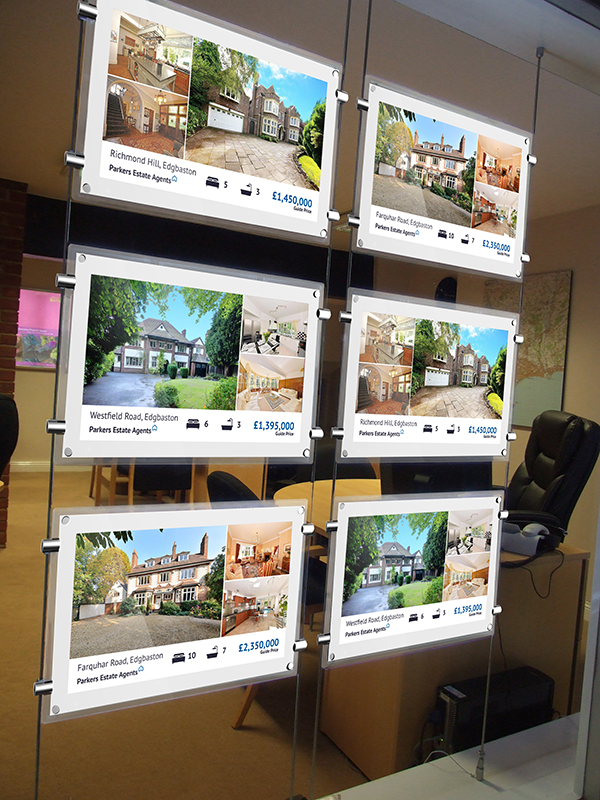

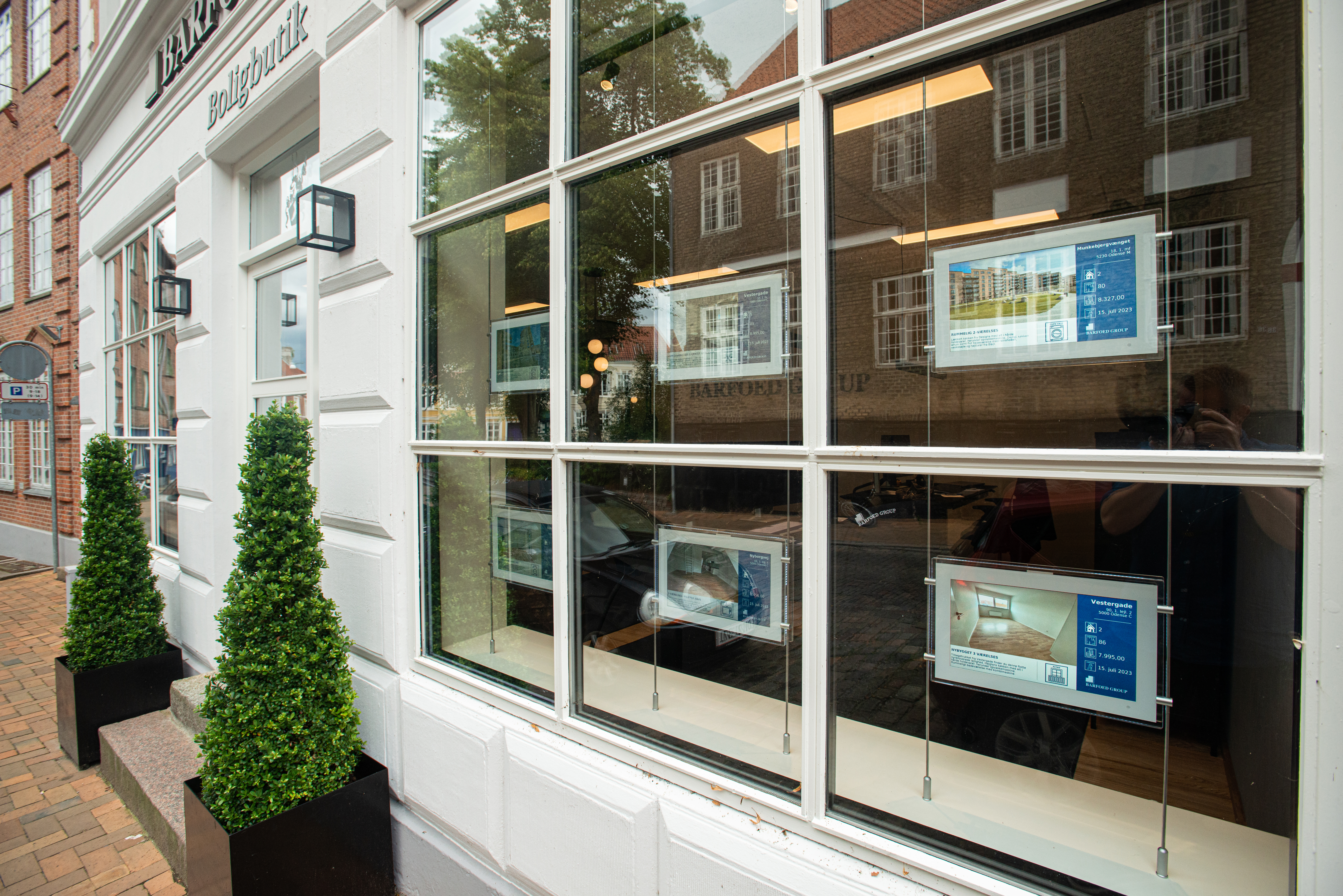

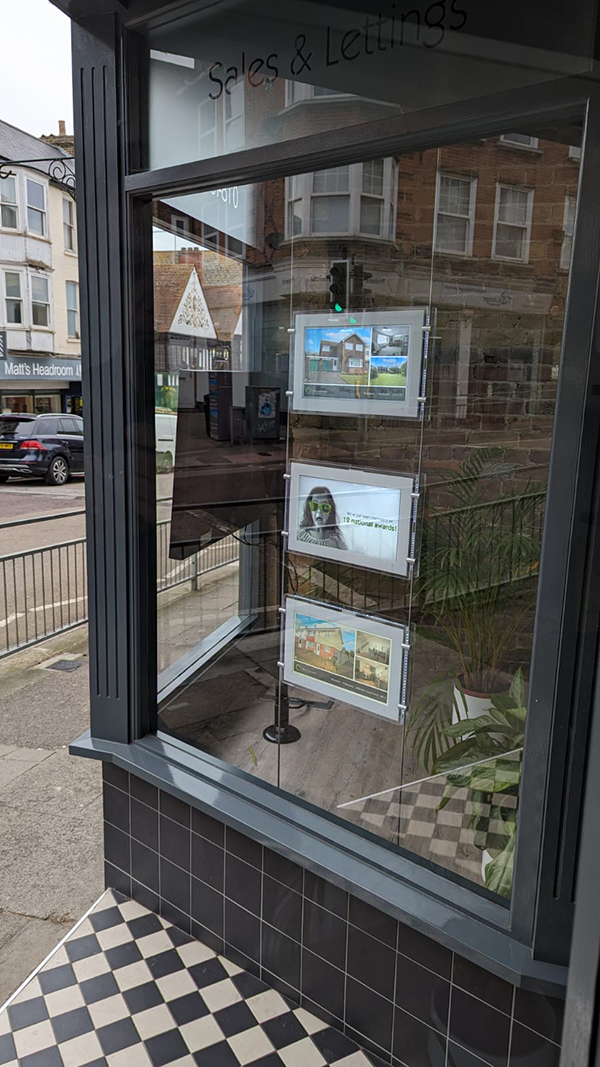

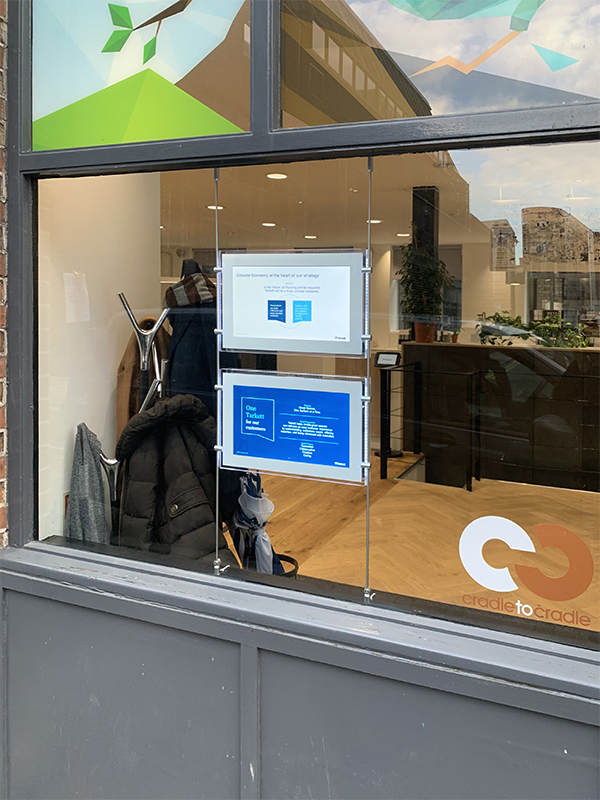

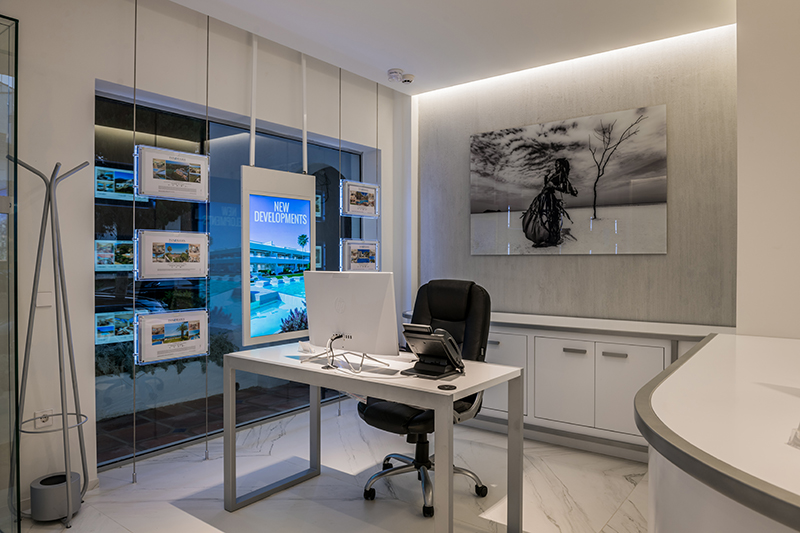

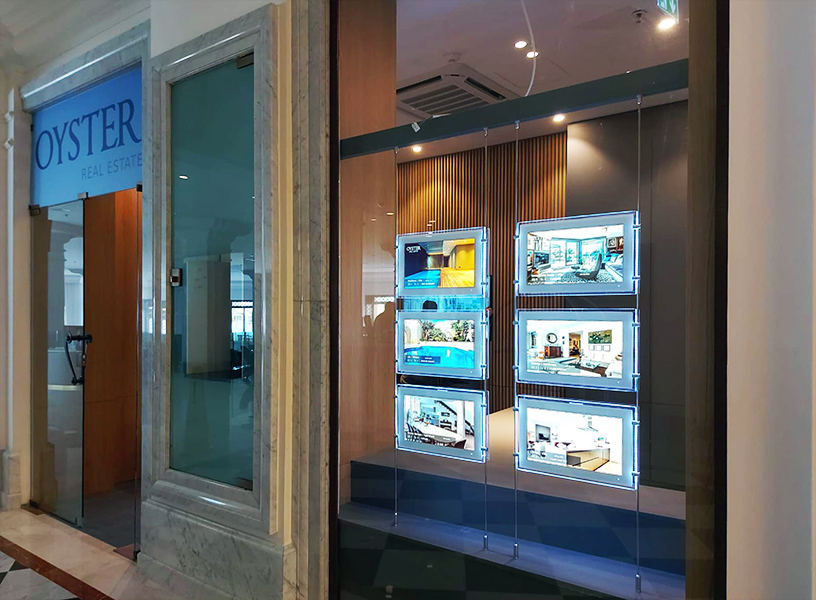

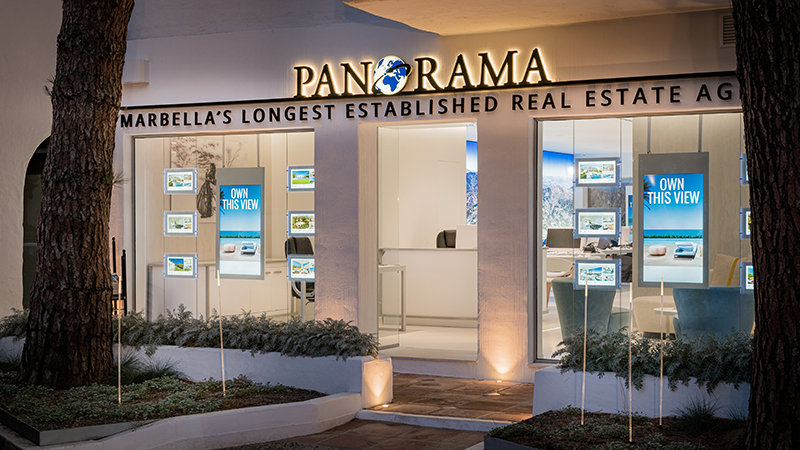

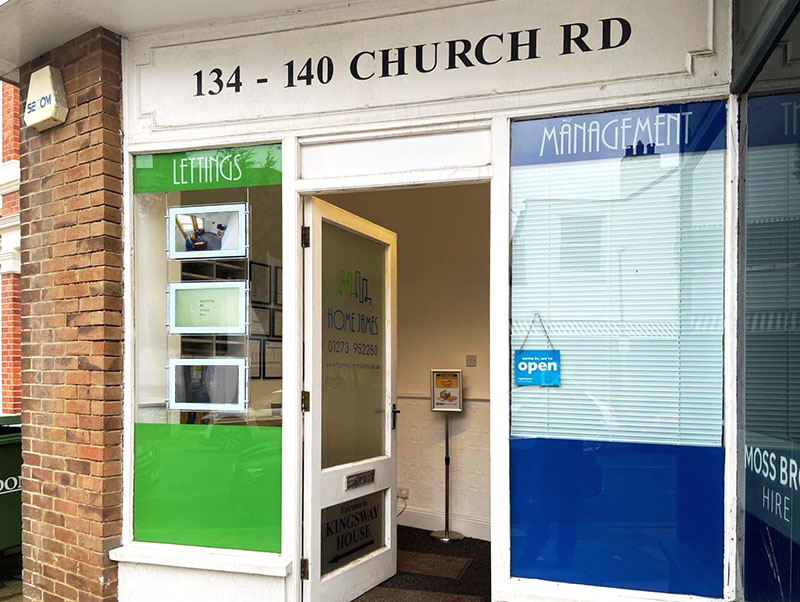

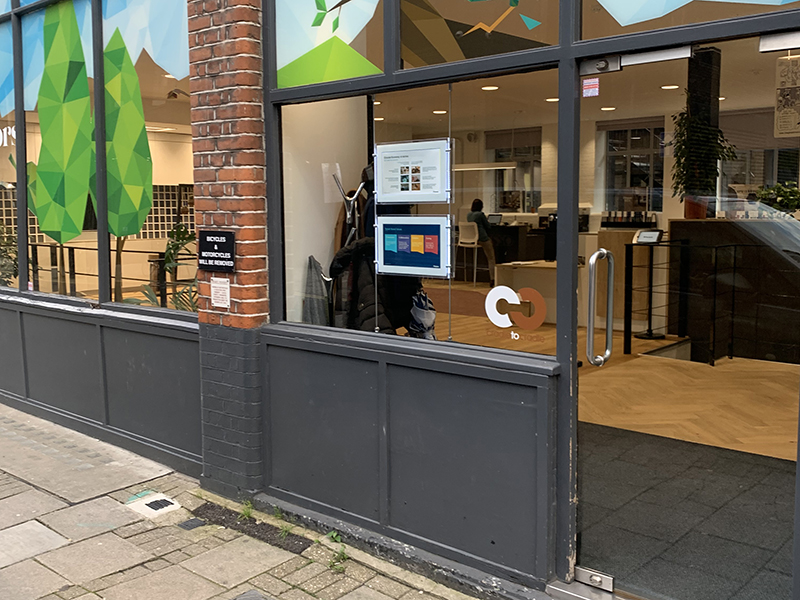

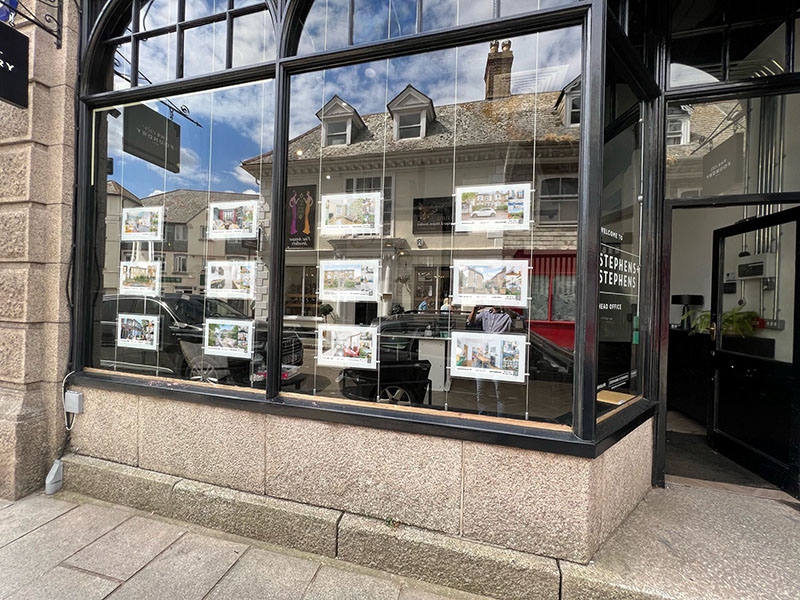

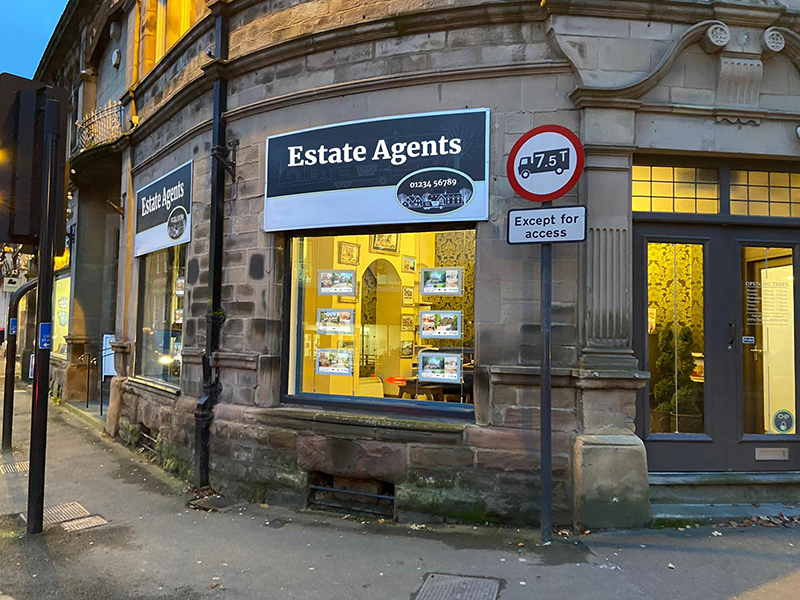

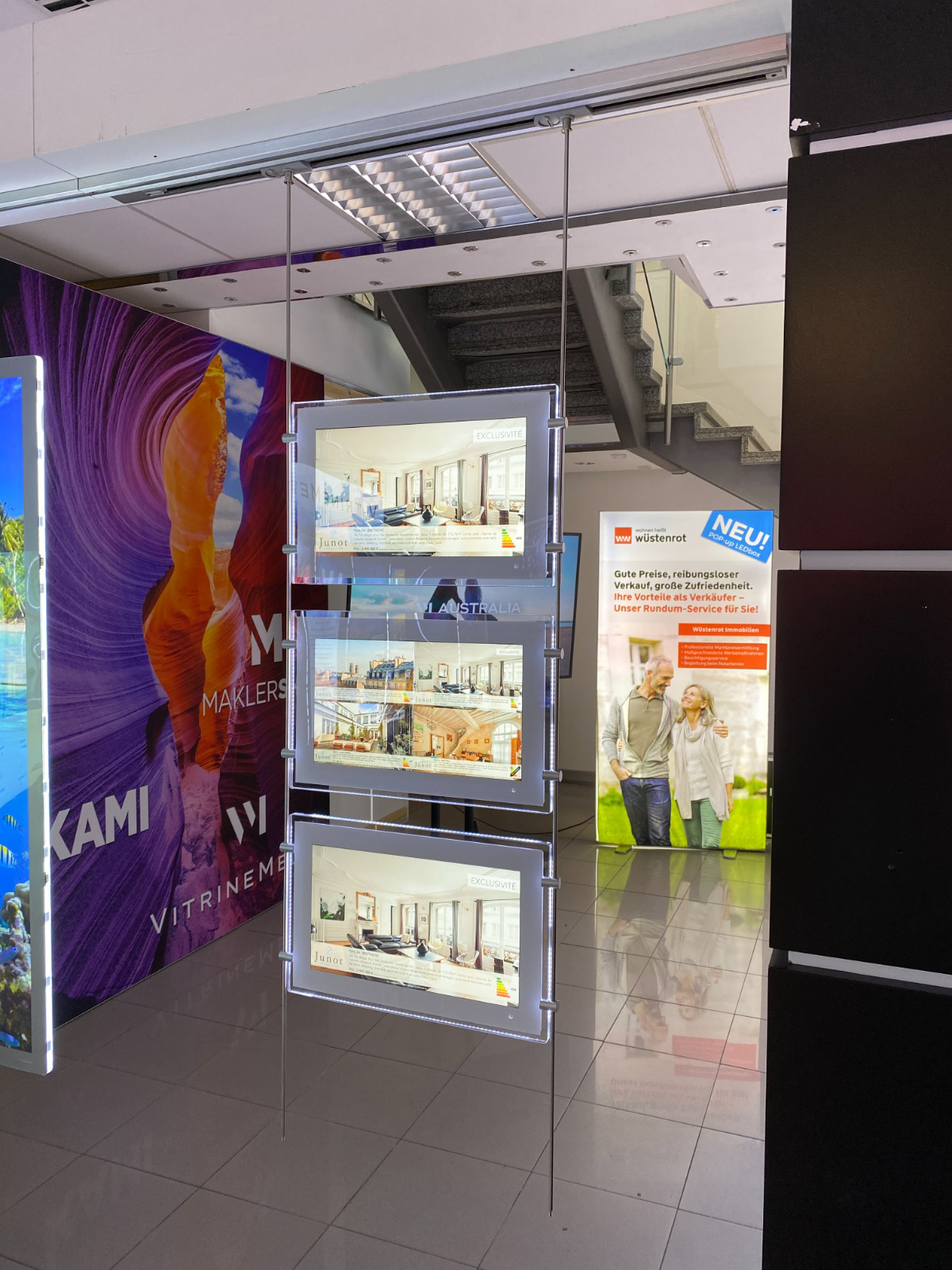

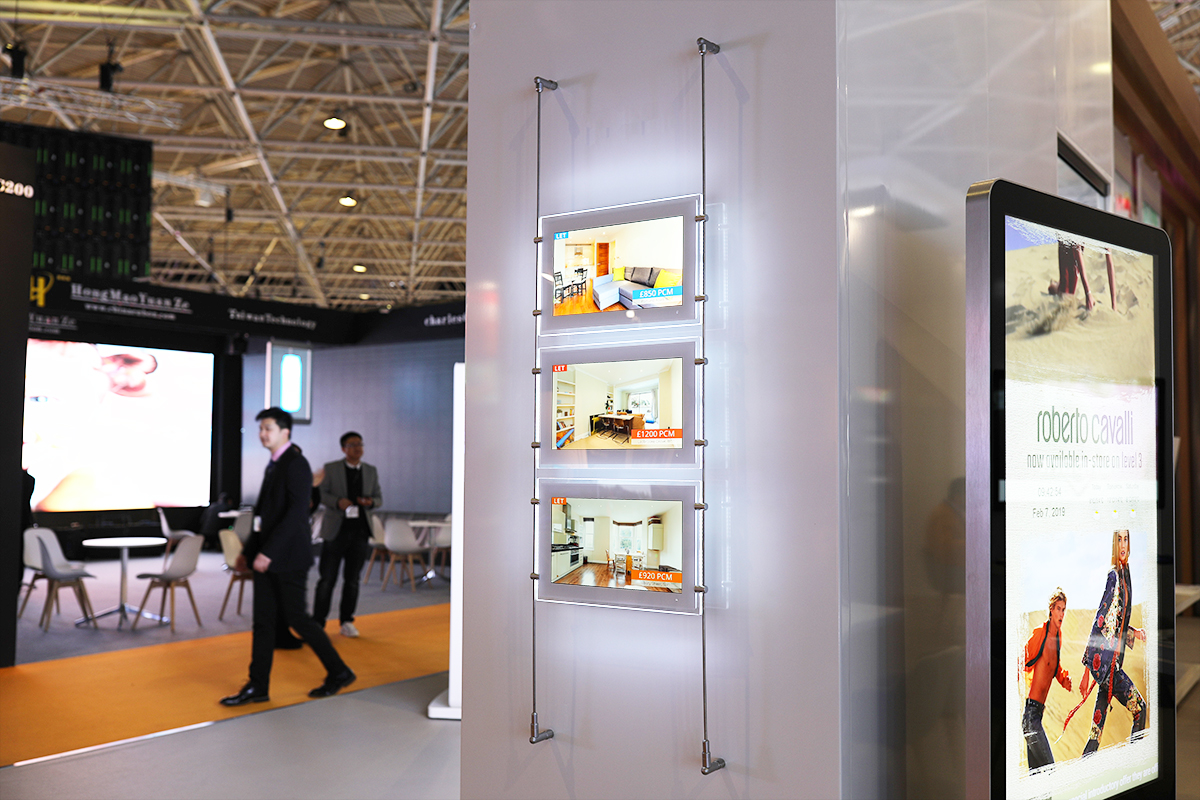

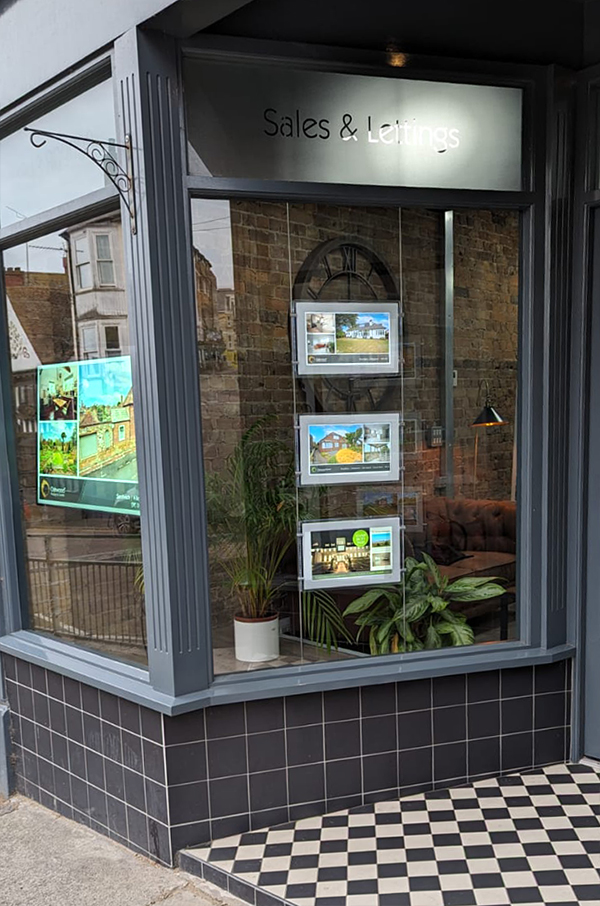

Digital Light Pockets

Catch the attention of passers-by and potential customers with these 1,000cd/m² high brightness LCD digital light pockets. Ideal for combining with static light pockets in window displays to provide eye-catching motion alongside printed signage.

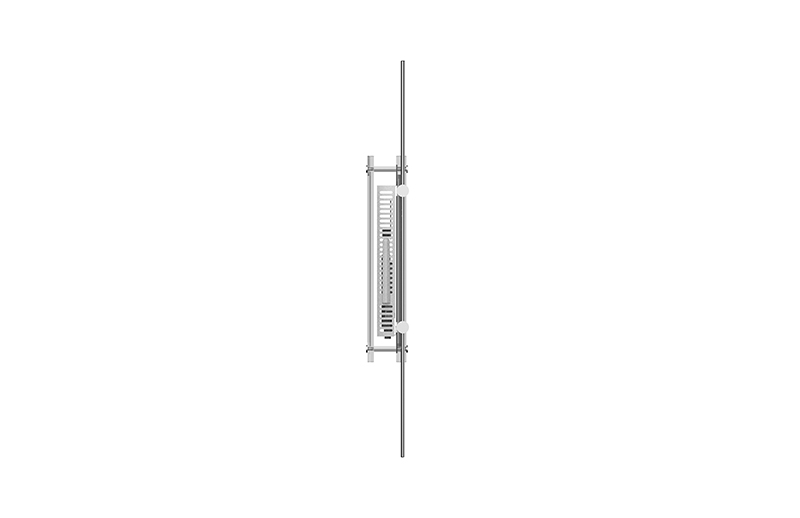

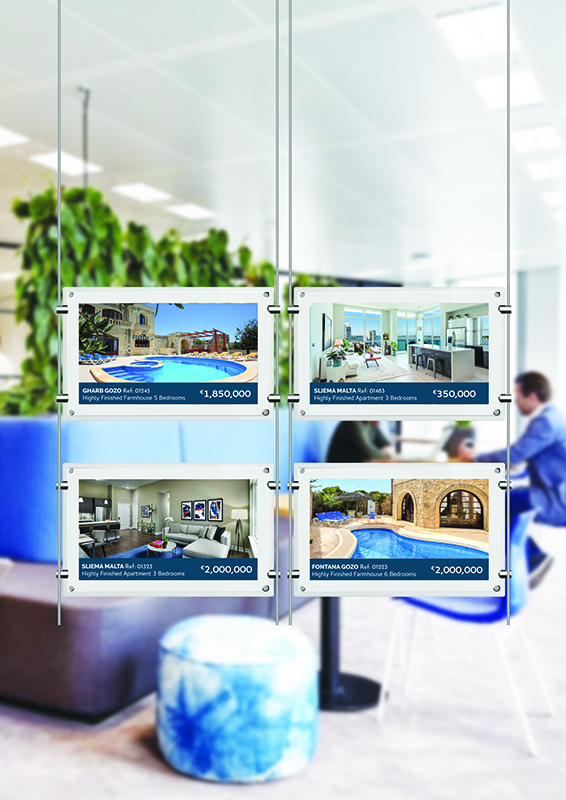

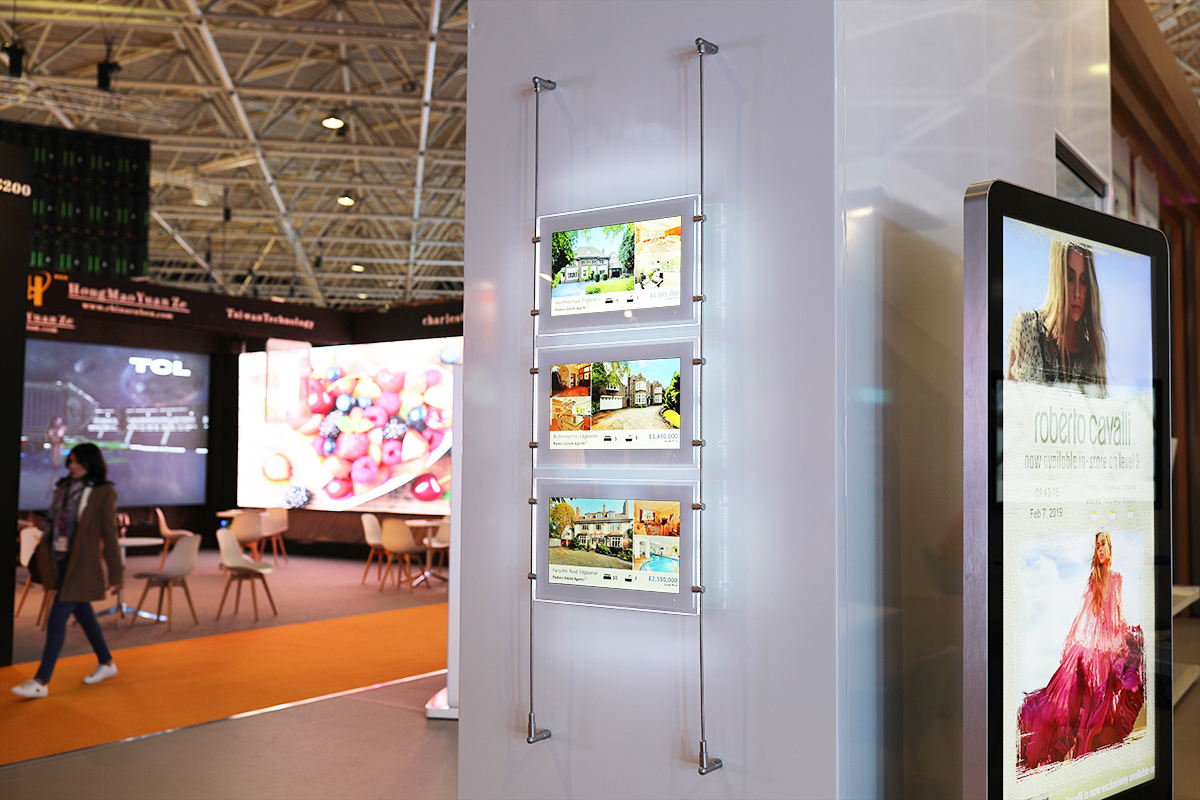

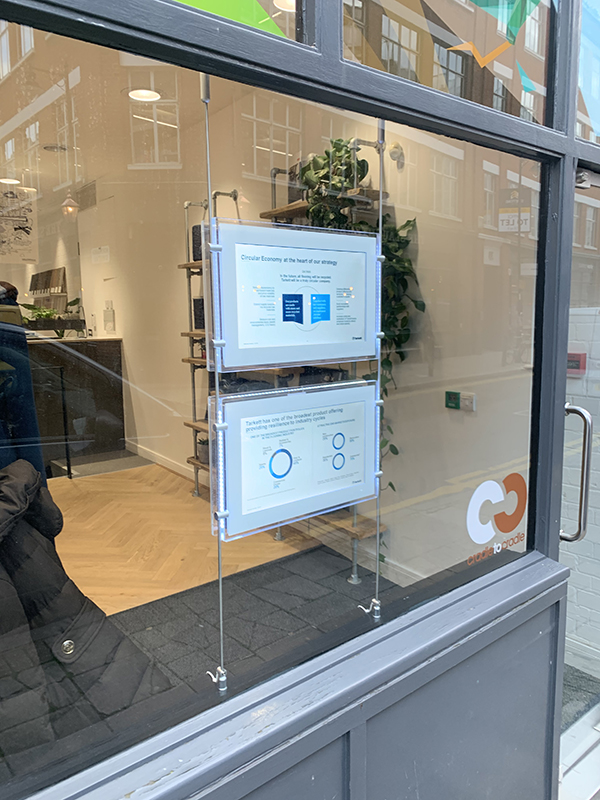

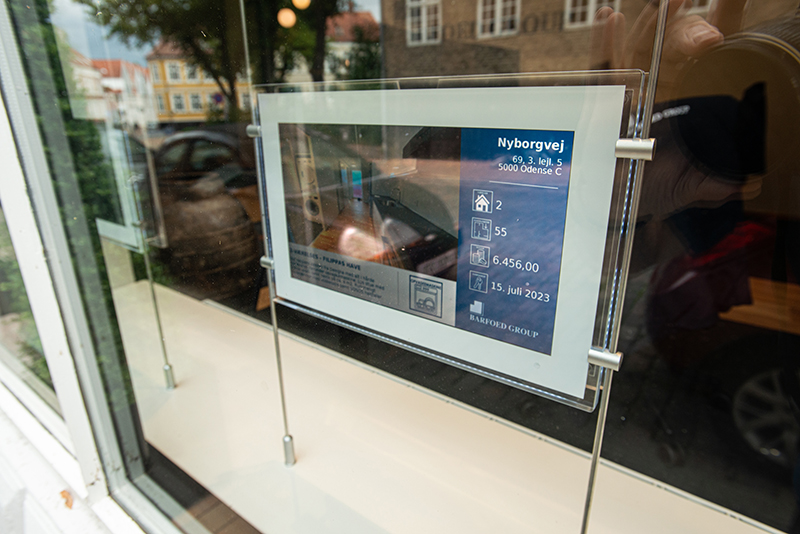

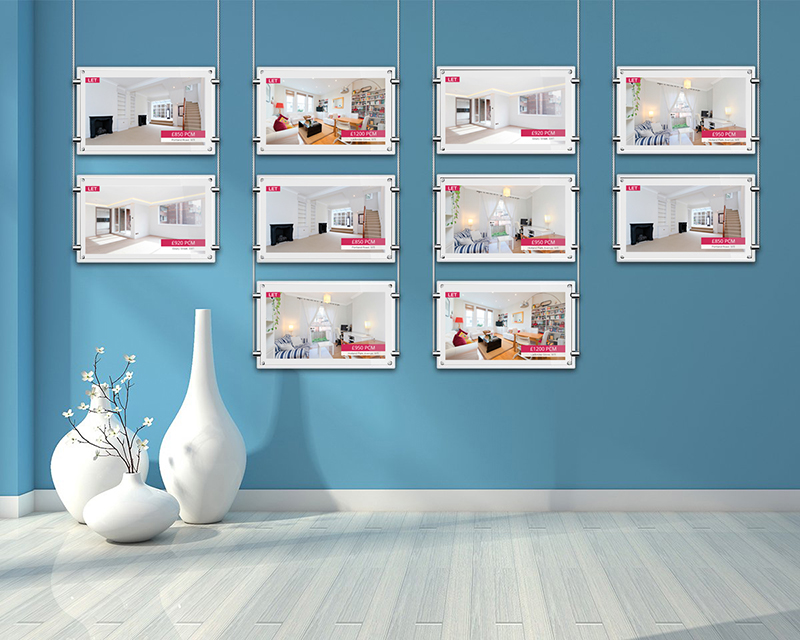

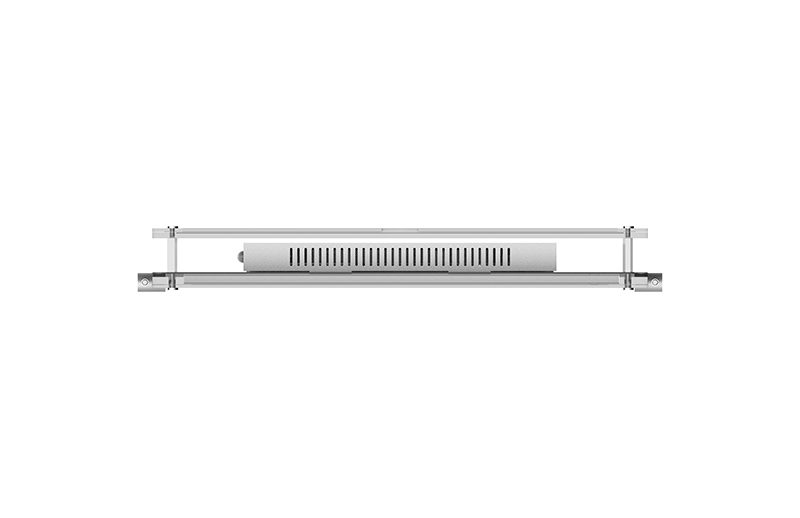

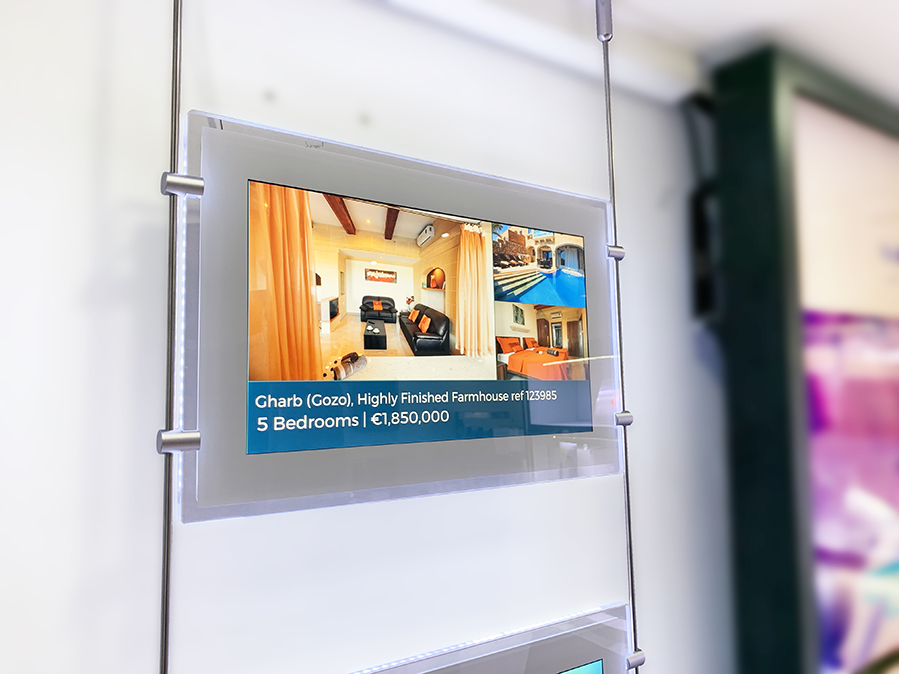

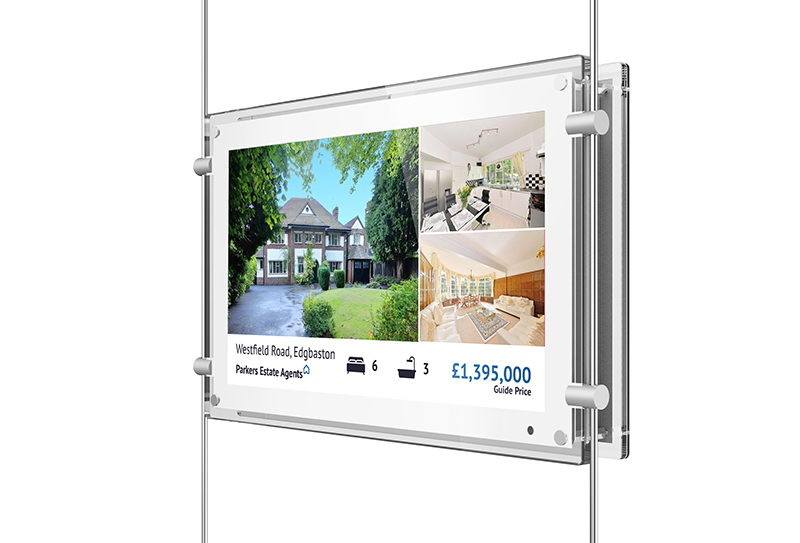

Rod Powered Displays

No mains cable is required to provide power as these innovative screens are powered via the rods on which they are mounted. Achieve a clean and seamless installation with no cables whatsoever for a modern and sleek feel.

1,000cd/m² Brightness

Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (1,000cd/m²); almost 4 times brighter than a standard home TV to allow easy readability in window displays.

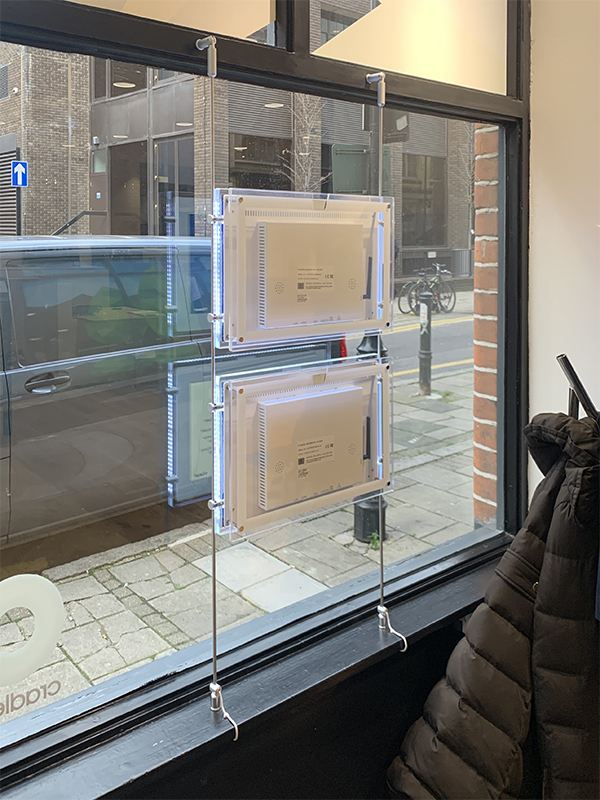

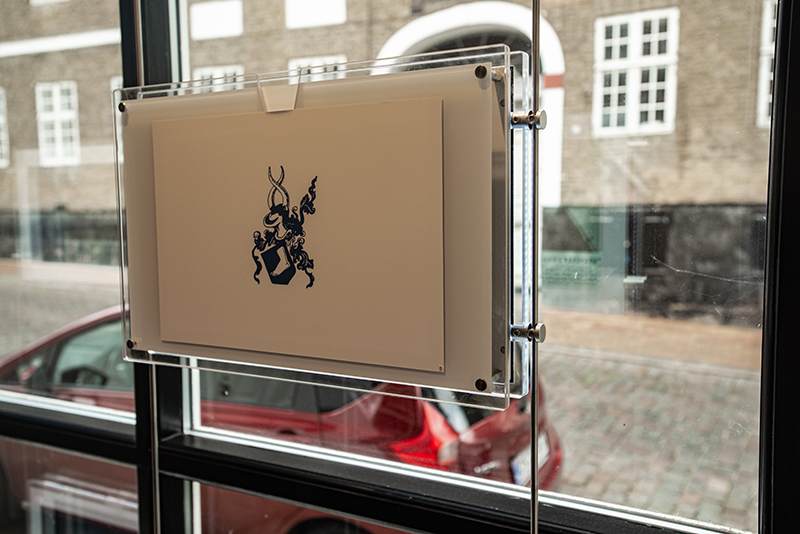

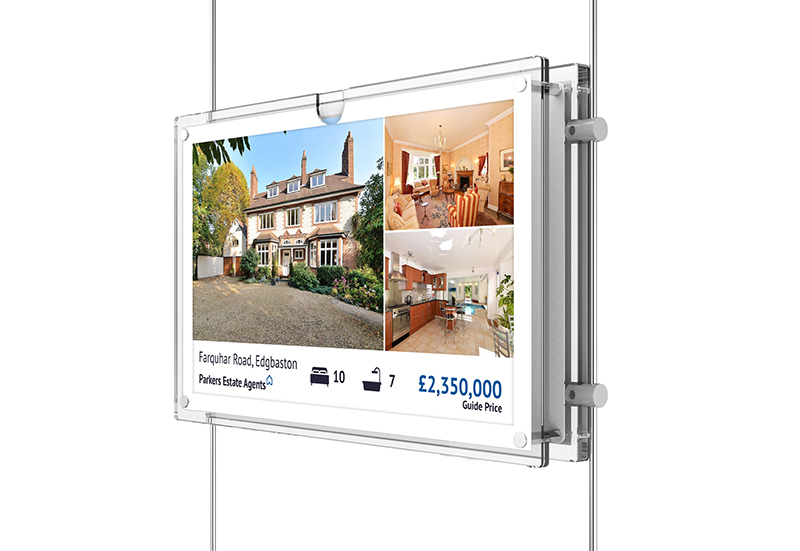

Rear A4 Graphics Pocket

On the rear of the displays there is a pocket that a printed A4 graphic can be inserted into to really maximise on the space used. This can be removed if necessary but comes as standard at no extra cost.

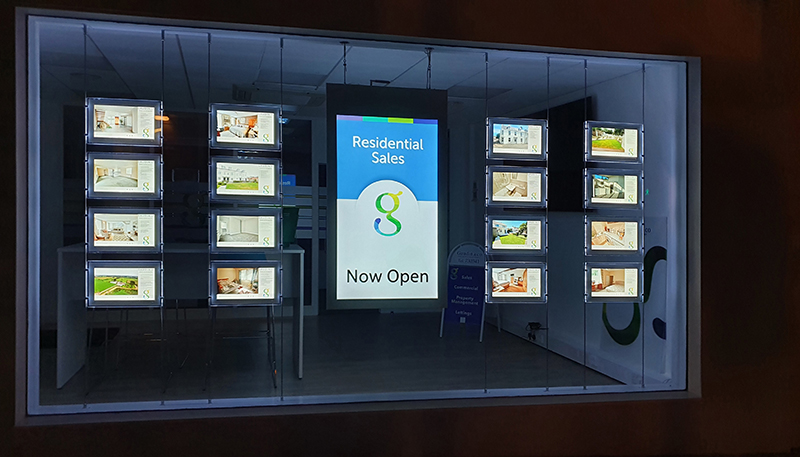

LED Frame

The Digital Rod Displays have an attractive LED illuminated bevelled edge to compliment traditional static light pockets seamlessly.

Android Media Player

The built-in HD Android media player allows you to update content via USB plug and play or via the internet without needing any additional hardware. You can also install third-party Android apps if required, including a host of estate agent property management software.

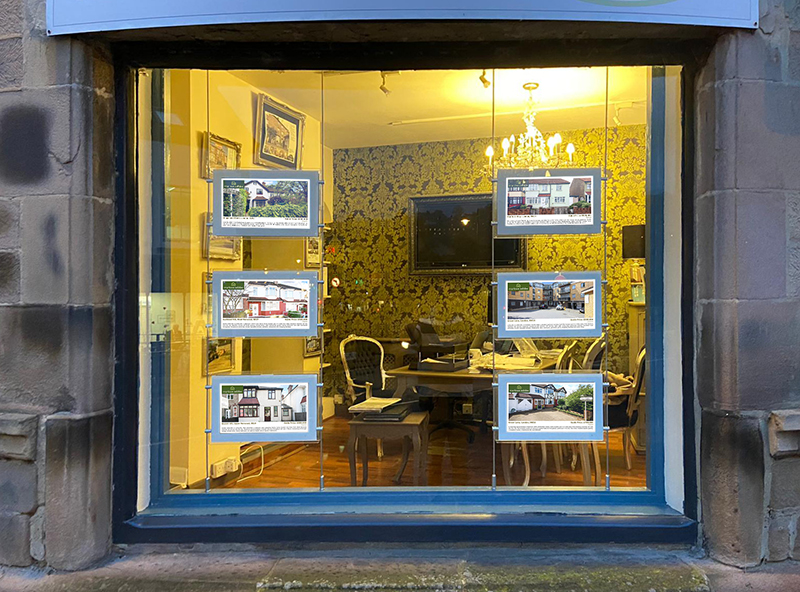

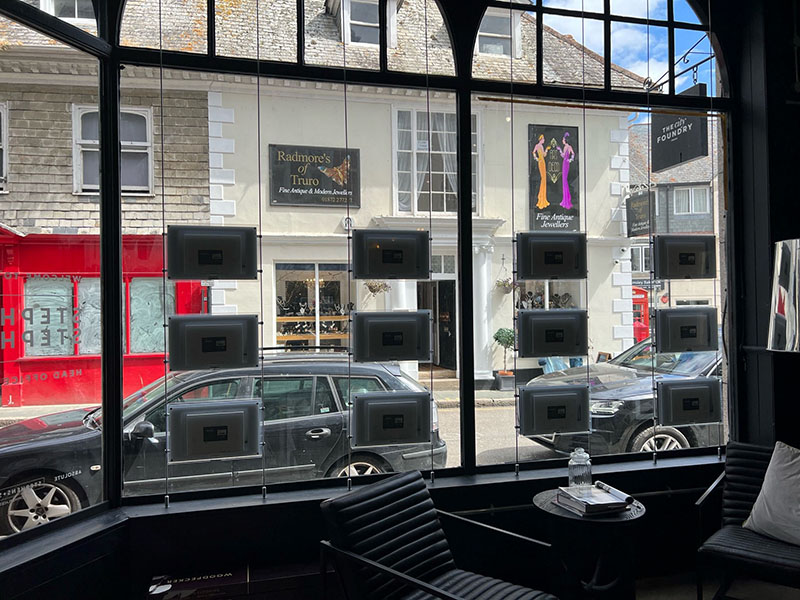

Synchronise Media Player

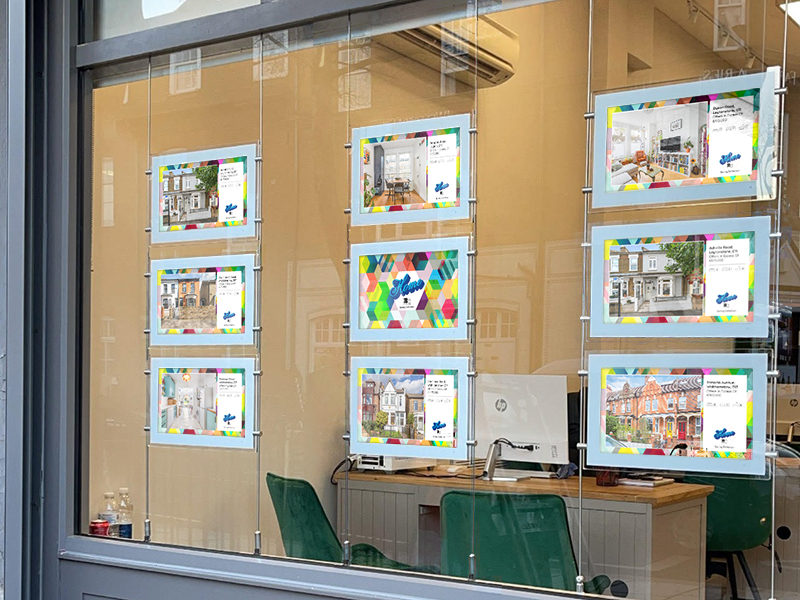

Synchronise your content across multiple Digital Rod Displays in the same window display. You can achieve the effect of one large image or video across multiple screens or have content playing and transitioning in perfect unison.

Exclusive Template Library

As well as being able to create your own layouts, you can choose from our exclusive library of pre-designed editable templates. Choose an existing layout, add your own images and information, then publish it to your screen.

USB Plug and Play

If you don’t want to use our online CMS these displays can be updated quickly and easily by copying your images and videos over via USB stick. Even if you are using the network option this is a great backup if there are any internal network related issues.

These displays are compatible with a host of third party estate agent property management software, including:

Plus many more – get in touch to find out more

Specification

Full Specification

15 Inch - RD15HD8

Panel

Screen Size

15"

Resolution

1920x1080

Display Area

344x193.5

Aspect Ratio

16:9

Brightness (cd/m²)

1,000

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1

Audio

Speaker Type

5W, 8Ω (x2)

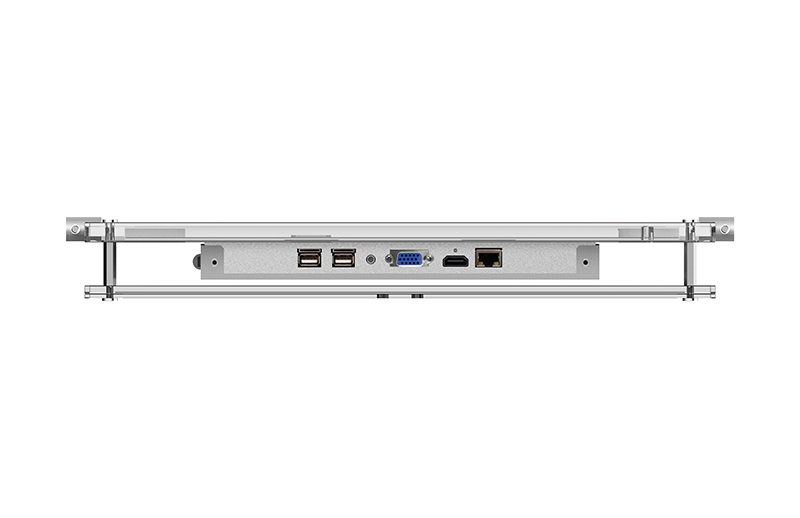

AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)

Power

Power Consumption (W)

Input Voltage (with transformer)

12V (DC)

Mechanical

Unit Size (WxHxD mm)

430x280x49.2* Includes Rear Graphics Pocket

Package Size (WxHxD mm)

510x360x185

Net Weight (kg)

3.3

Gross Weight (kg)

6.1

Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

6GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

2GB DDR3

Internal Storage

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

Included

Scheduling Software, Remote Control, User Manual

Optional

Network Upgrade

Gallery

Videos

Downloads

Spec Sheet

15" Digital Rod Displays - Spec Sheet

Technical Drawings

15" Digital Rod Displays - Technical Drawing

User Manual

Digital Rod Displays - Installation Guide

Photos

Digital Rod Displays - Images

Signage Software

Advertising Playlist Editor
