IP Rated Ultra High Brightness Digital Signage Solution
Outdoor Digital Advertising Displays
(22"-65") Larger sizes available on request
Fully integrated stunning tablet-style displays; perfect for any weather conditions
2500cd/m²
2500cd/m² Brightness
Weather Proof
Weather Proof
Vandal Proof
Vandal Proof
temperature control system
Smart Temperature Control System
steel enclosure
Steel Enclosure
Anti Reflective Glass
Anti Reflective Glass
Wide Viewing Angle
Wide Viewing Angle
ambient light sensor
Ambient Light Sensor

24/7 Usage
24/7 Usage
Plug and Play
Plug and Play
Network product
Network Upgrade Available
pcap touch
Touch Upgrade Available
Free Wall Mount
Free Wall Mount
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
outdoor advertising display
sunlight readable
Direct Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.

weatherproof display
Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.
outdoor advertising display
local dimming

Full Array Local Dimming Panel∗

Local Dimming delivers unparalleled image quality by dynamically adjusting brightness across the entire screen. Experience stunning contrast, deeper blacks, and vibrant highlights while dramatically reducing power consumption and heat output—enhancing both efficiency and panel longevity for uncompromising outdoor performance.

4k resolution

Remarkable 4K Display∗

With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.

induistrial paint

Enhanced Durability

Featuring an improved paint formulation, our upgraded design offers greater resilience against the elements. This ensures a consistently high-quality appearance, even in harsh outdoor conditions, providing long-lasting protection and maintaining a professional look in any environment.

vandal proof
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.

temperature display
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.

anti reflective glass
Anti Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.

plug and play
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.

outdoor digital advertising display
lockable wall mount
Free Lockable Wall Mount
To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.

internal locker
Internal Locker
Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.

network upgrade
Optional Network Upgrade
For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.

customisation
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

outdoor digital advertising display
*55" and above only
Outdoor PCAP Wall-Mounted Touch Screen Displays
outdoor pcap touch screen
pcap touch screen
PCAP Touch Screen
State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.

no ghost touch
No Ghost Touch
The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.

Full Specification (Advertising Displays)
22 Inch - OW22D4

Display Area (mm)

477x270

Unit Size (mm)

737x397x120

Resolution (px)

1920x1080

Brightness (cd/m²)

2,000

Colour

1.06B

Pixel Pitch

0.2537x 0.2537

VESA Holes

250x250

Net Weight

22kg

Gross Weight

27kg

Power Consumption (w)

130
32 Inch - OW32E

Display Area (mm)

702x396

Unit Size (mm)

1001x516x130

Resolution (px)

1920x1080

Brightness (cd/m²)

2,500

Colour

1.06B

Pixel Pitch

0.36375x0.36375

VESA Holes

340x340

Net Weight

TBC

Gross Weight

TBC

Power Consumption (w)

TBC
43 Inch - OW43D4

Display Area (mm)

941x529

Unit Size (mm)

1410x670x140

Resolution (px)

1920x1080

Brightness (cd/m²)

2,500

Colour

16.7M

Pixel Pitch

0.1615x0.4845

VESA Holes (mm)

400x400

Net Weight

65kg

Gross Weight

82.5kg

Power Consumption (w)

250
49 Inch - OW49D5

Display Area (mm)

1073x603

Unit Size (WxHxD mm)

1500x746x140

Resolution (px)

1920x1080

Brightness (cd/m²)

2,500

Package Size (WxHxD mm)

1630x900x300

Colour

1.06B

Pixel Pitch

0.565 x 0.565

Landscape VESA Holes (mm)

800x500

Portrait VESA Holes (mm)

500x800

Net Weight

82kg

Gross Weight

101kg

Power Consumption (w)

300
55 Inch - OW55F

Display Area (mm)

1215x686

Unit Size (mm)

1638x817x140

Resolution (px)

3840x2610

Brightness (cd/m²)

2,500

Package Size (WxHxD mm)

1780x1050x300

Colour

1.073G

Landscape VESA Holes (mm)

800x600

Portrait VESA Holes (mm)

600x800

Net Weight

95kg

Gross Weight

115.5kg

Power Consumption (w)

450
65 Inch - OW65F

Display Area (mm)

1428.5x803.5

Unit Size (mm)

1910x990x140

Resolution (px)

3840x2160

Brightness (cd/m²)

2,500

Resolution (px)

3840x2160

Colour

1.07B

Landscape VESA Holes (mm)

1100x400/1300x400

Portrait VESA Holes (mm)

600x800/600x1000

Net Weight

112kg

Gross Weight

165kg

Power Consumption (w)

550
Panel

Aspect Ratio

16:9

Viewing Angle

178°

Contrast Ratio

8000:1
AV Inputs

Video

HDMI, VGA
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Ingress Protection

IP65

Impact Protection

IK10

Operating Temperature

-20 °C to 50°C

Operating Humidity

10% - 80%

Storage Temperature

-30 °C to 60°C

Storage Humidity

5% - 90%
Computer (OW22, OW32, OW43 and OW49)

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

32GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

4GB DDR3

USB

USB2.0 HOST (x4)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Computer (OW55F and OW65)

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

3840x2160/2160x3840

Internal Storage

32GB

CPU

Rockchip RK3399 @1.8GHz

GPU

Mali-T860 MP4 @600MHz

RAM

4GB DDR3

USB

USB2.0 HOST (x2), USB3.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n/ac (Network version screen only)

OS

Android 10

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

AC Power Cable, Remote Control, Wall Mount

Optional

Touch Screen Upgrade, Network Upgrade, Camera
Videos

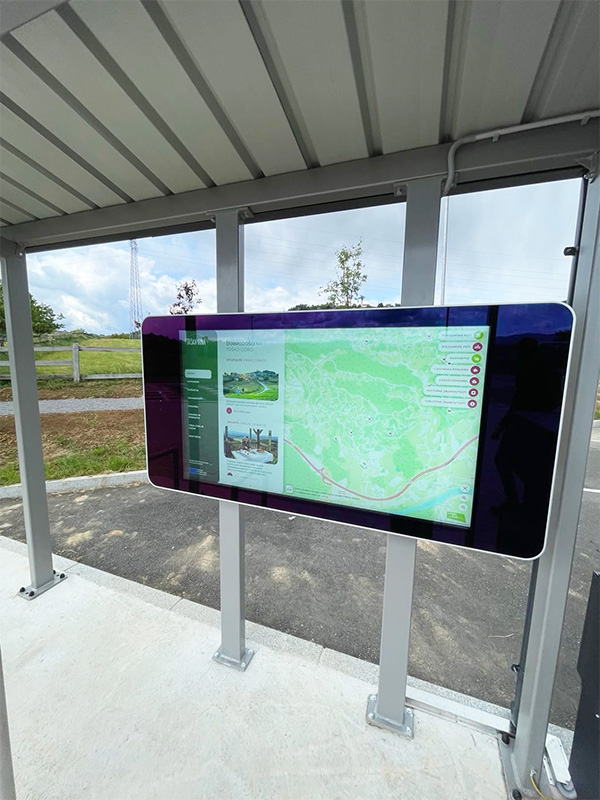

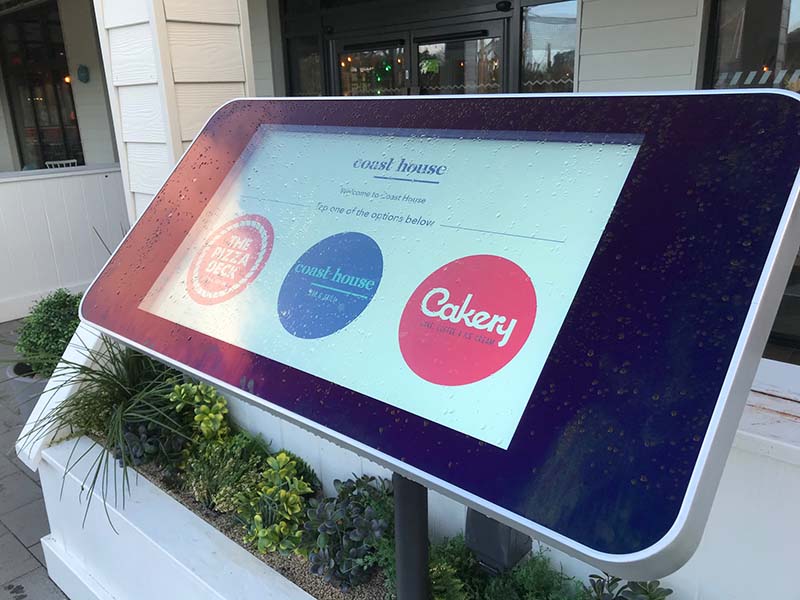

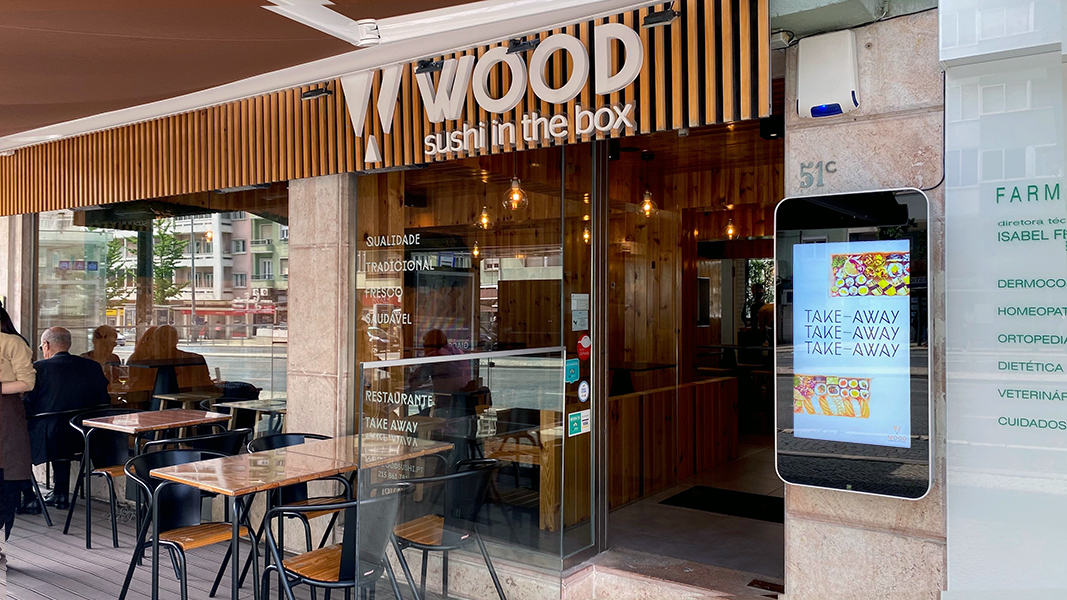

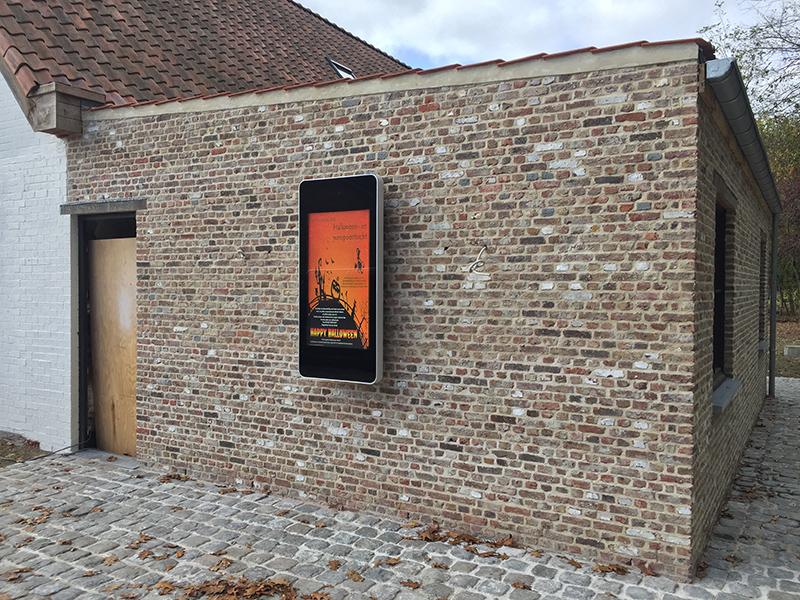

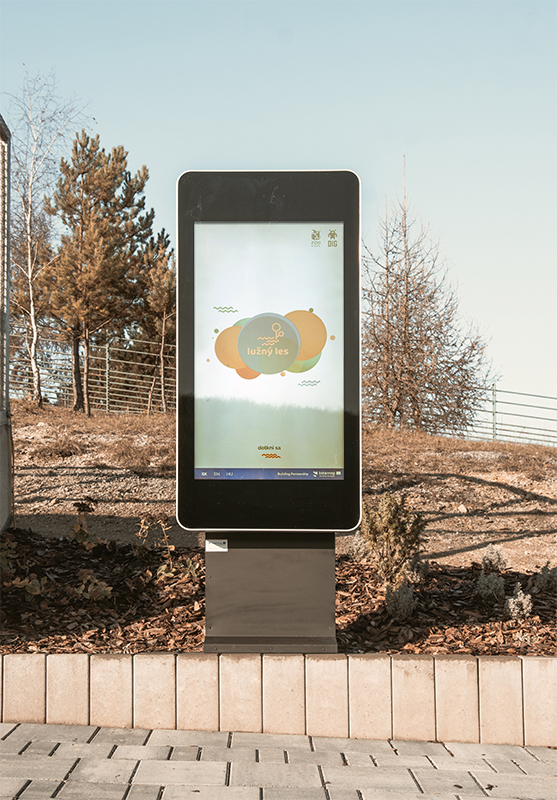

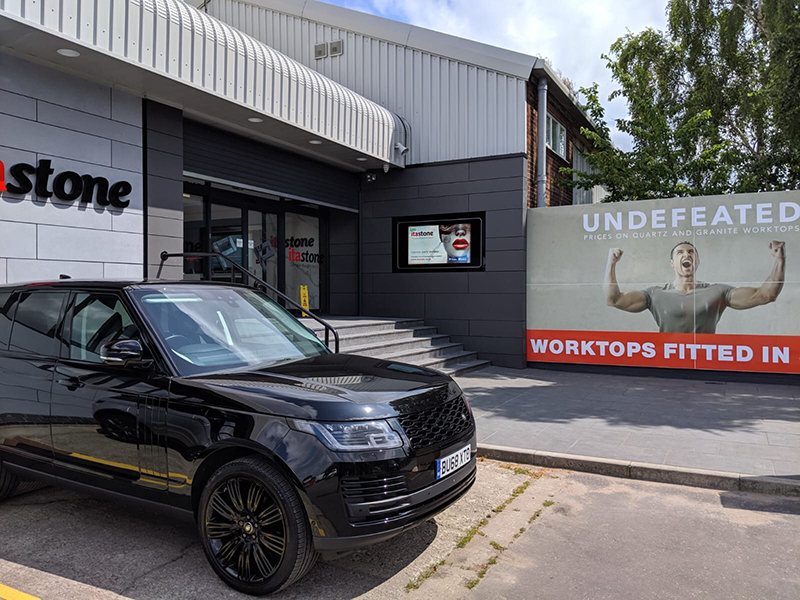

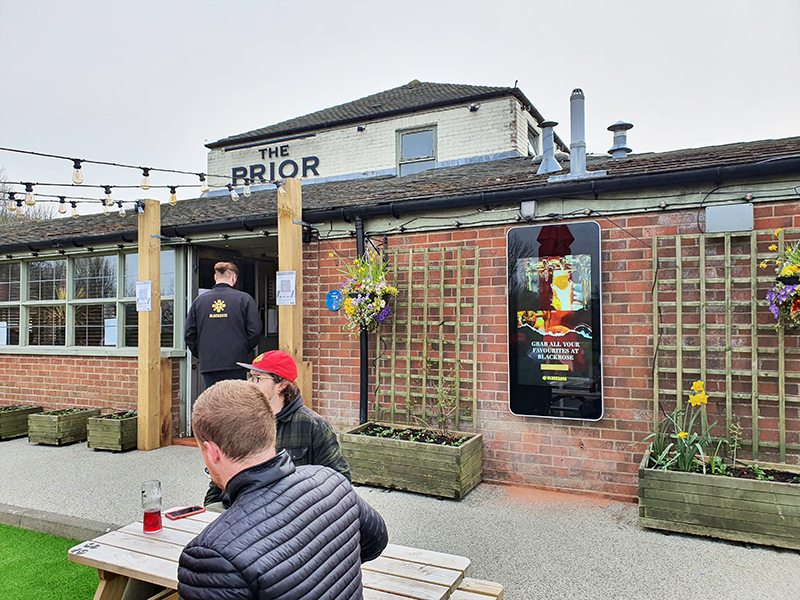

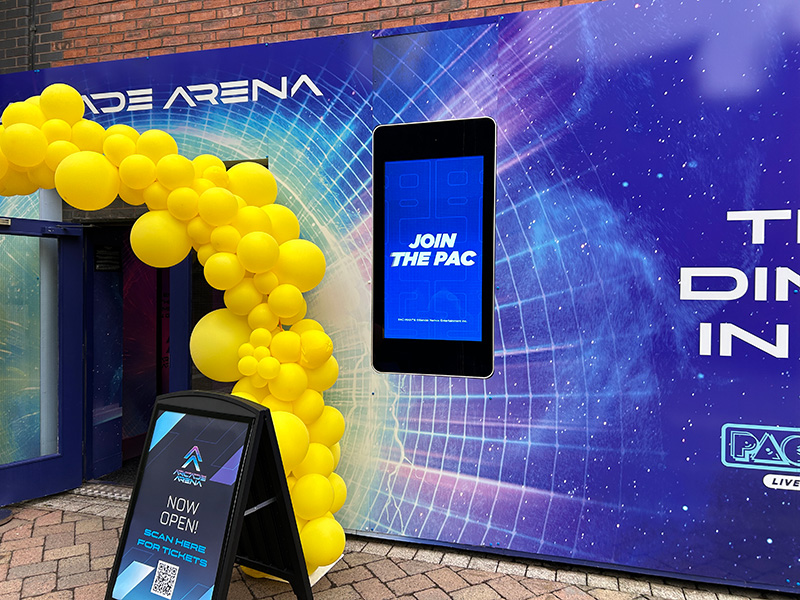

Case Studies
