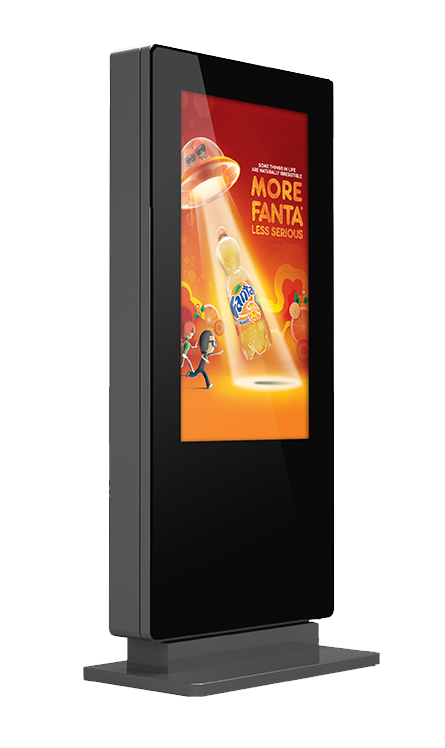

IP Rated Ultra High Brightness Digital Signage Totem Solution

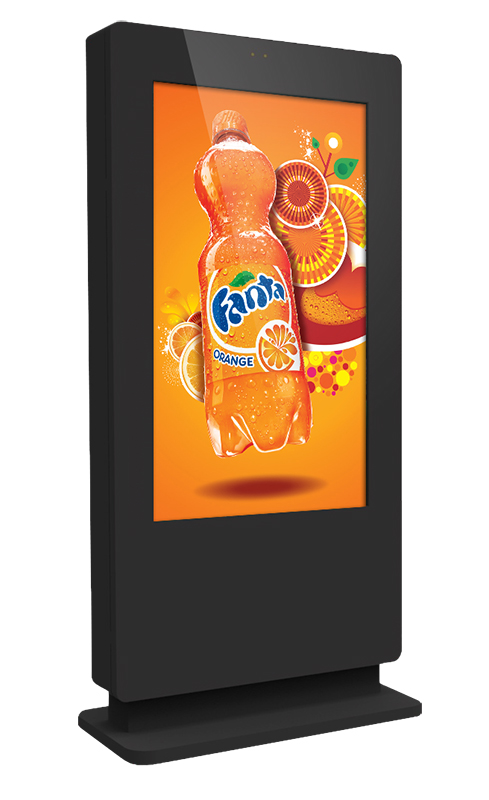

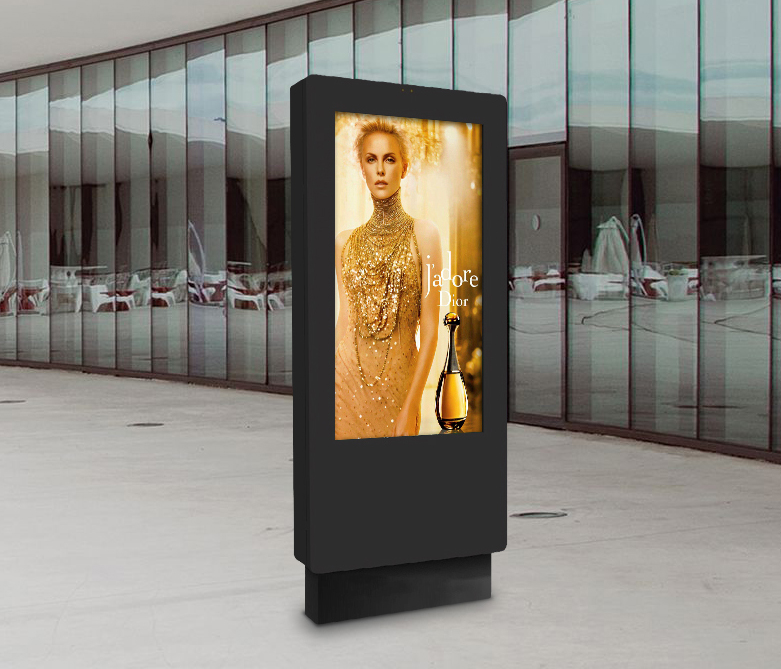

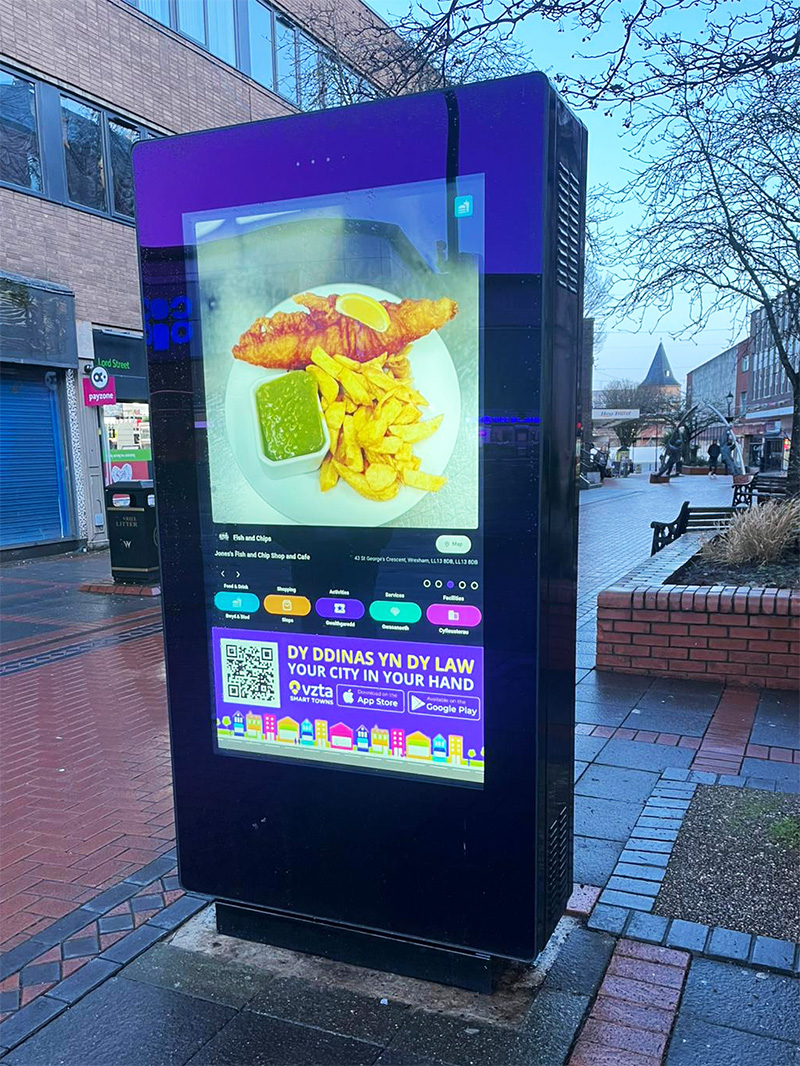

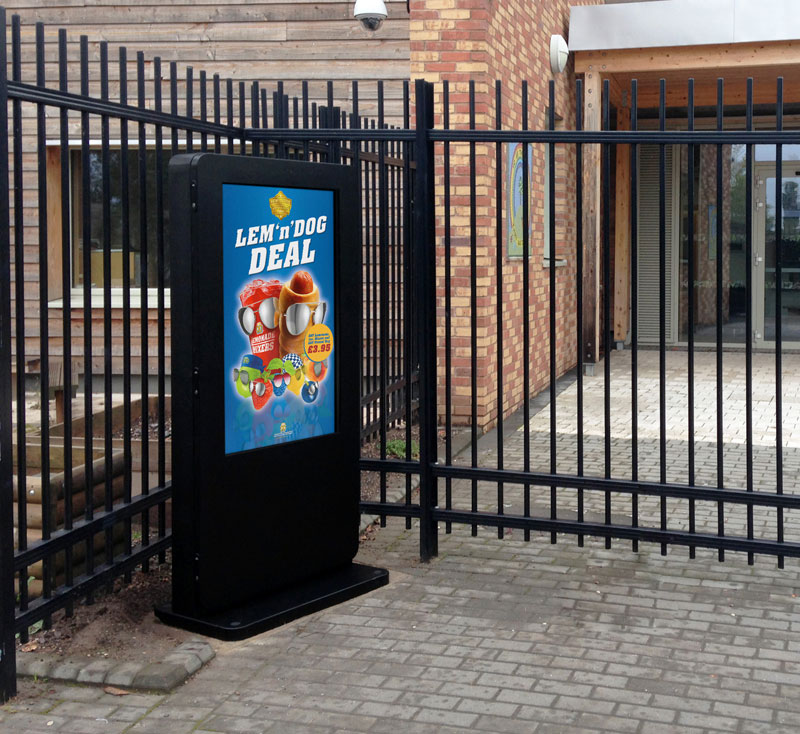

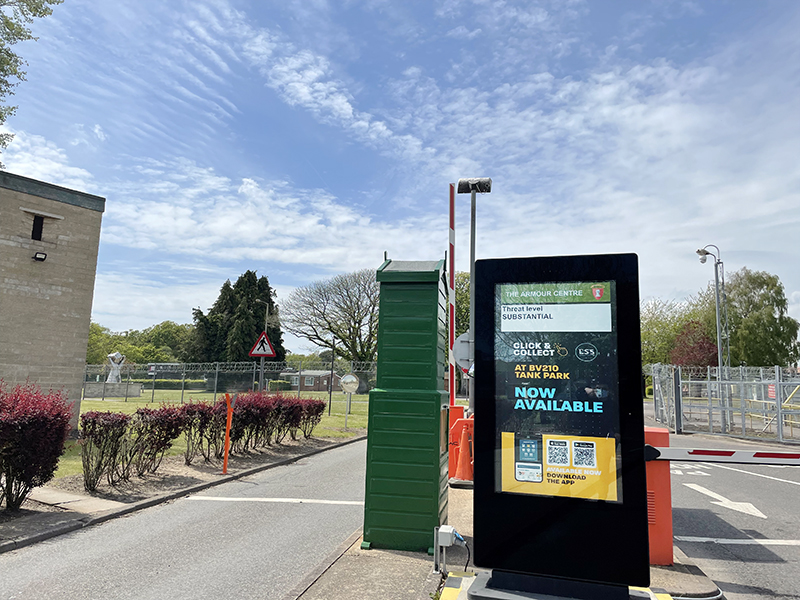

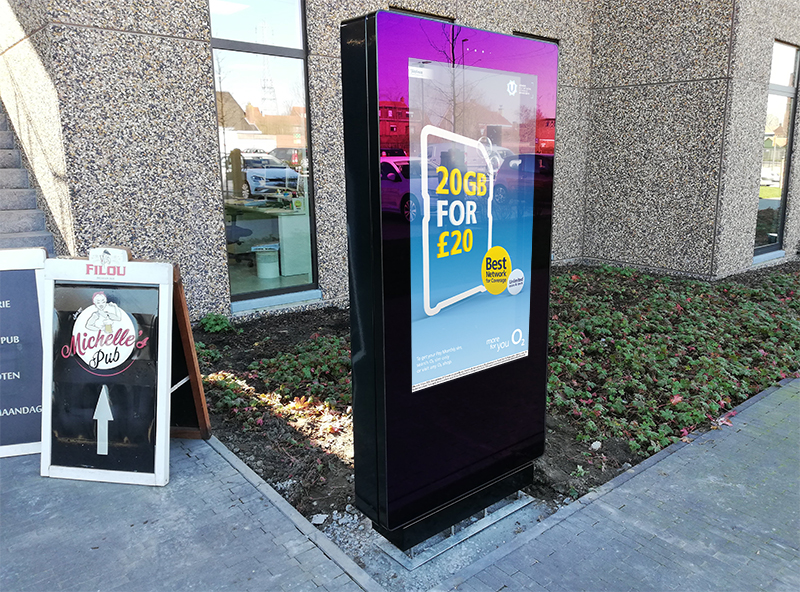

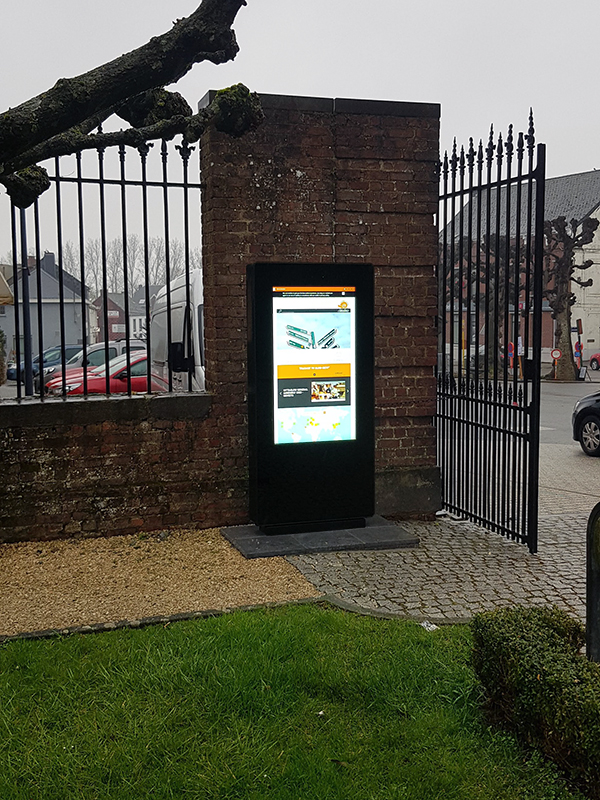

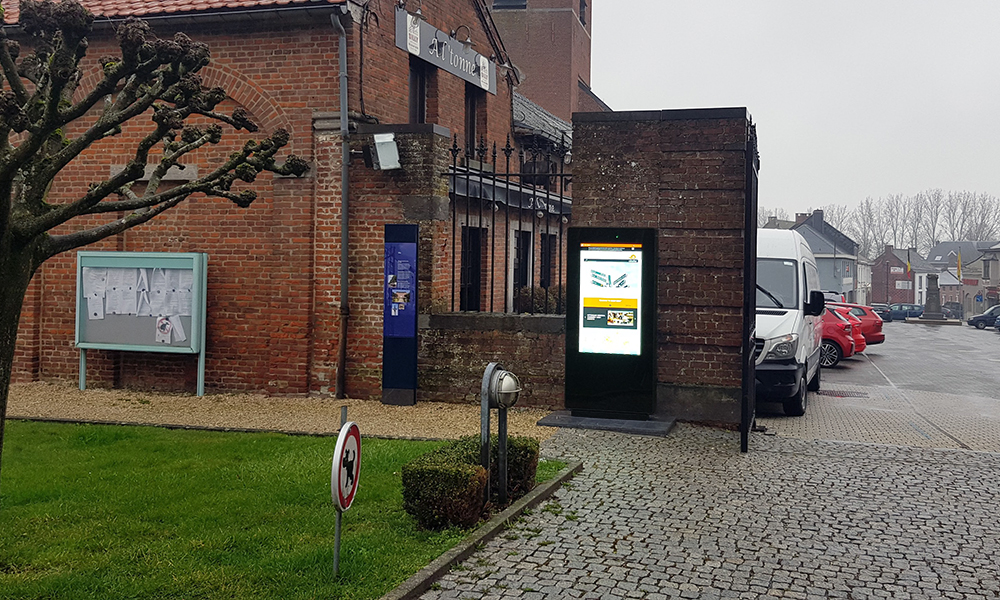

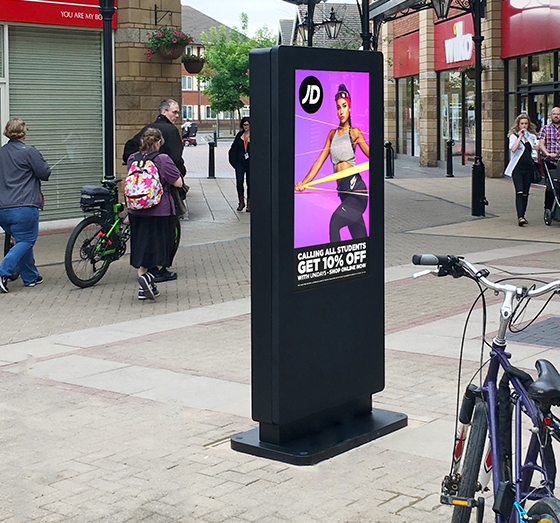

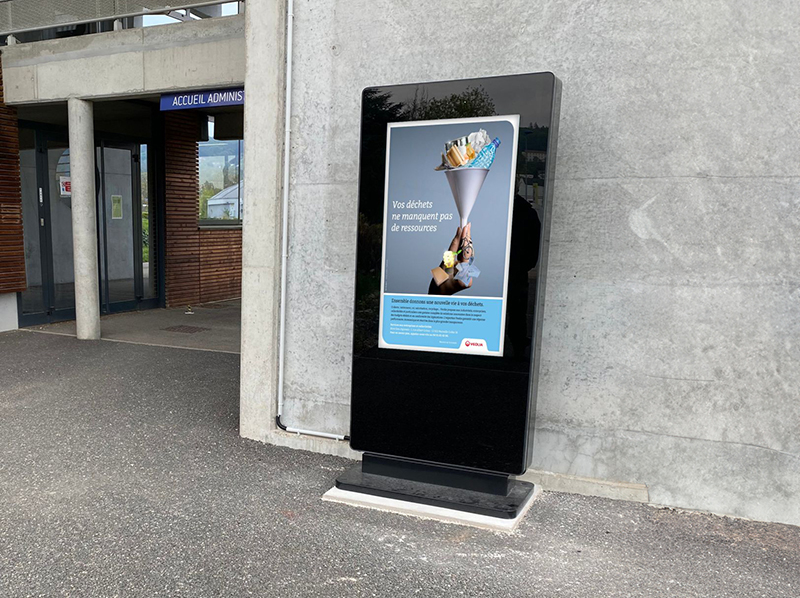

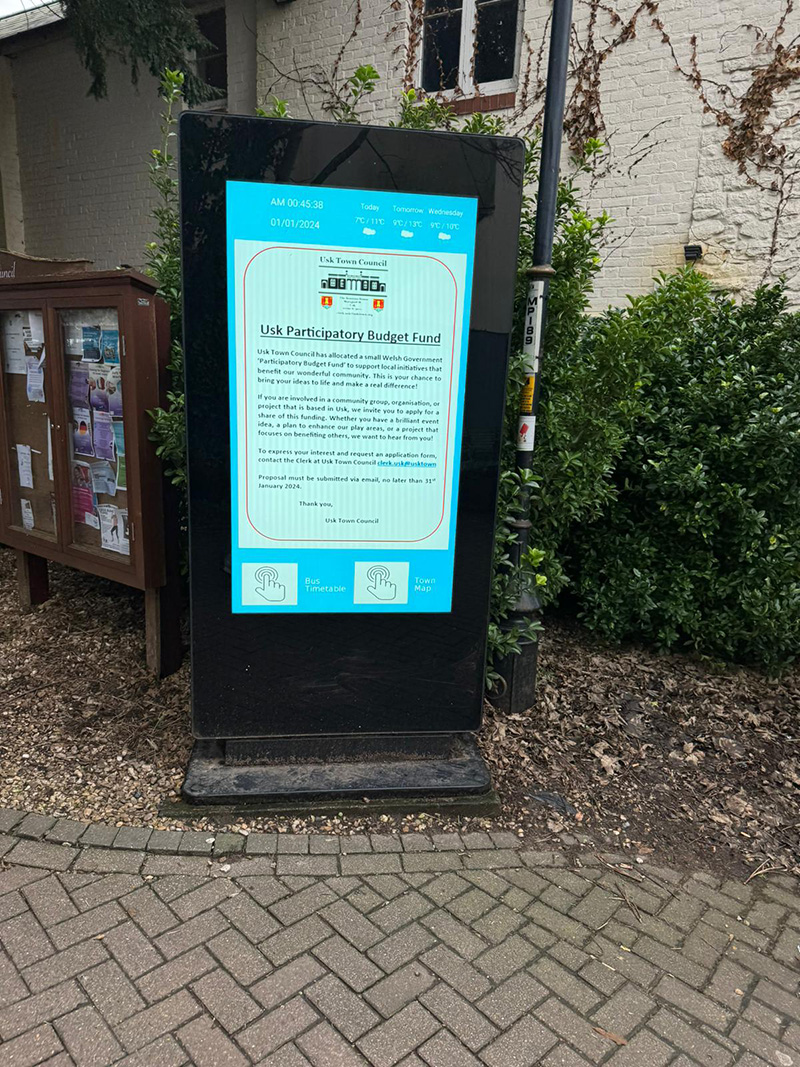

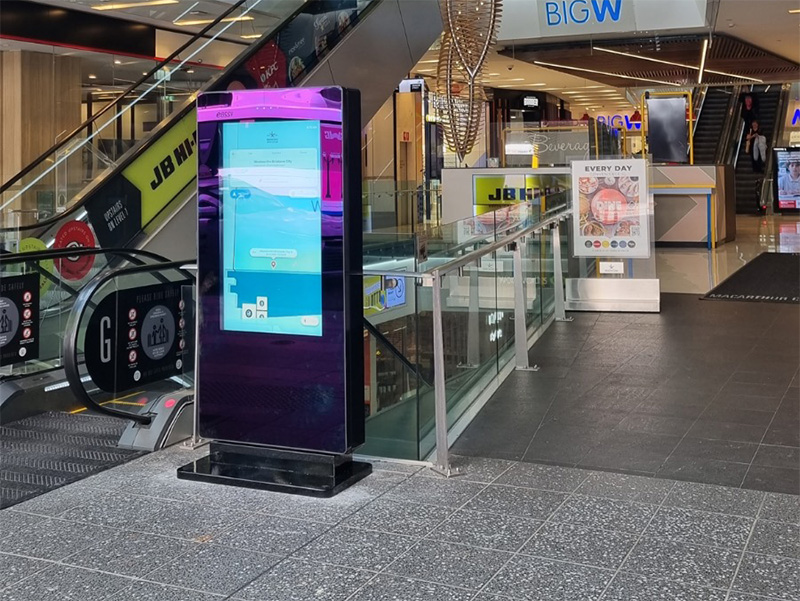

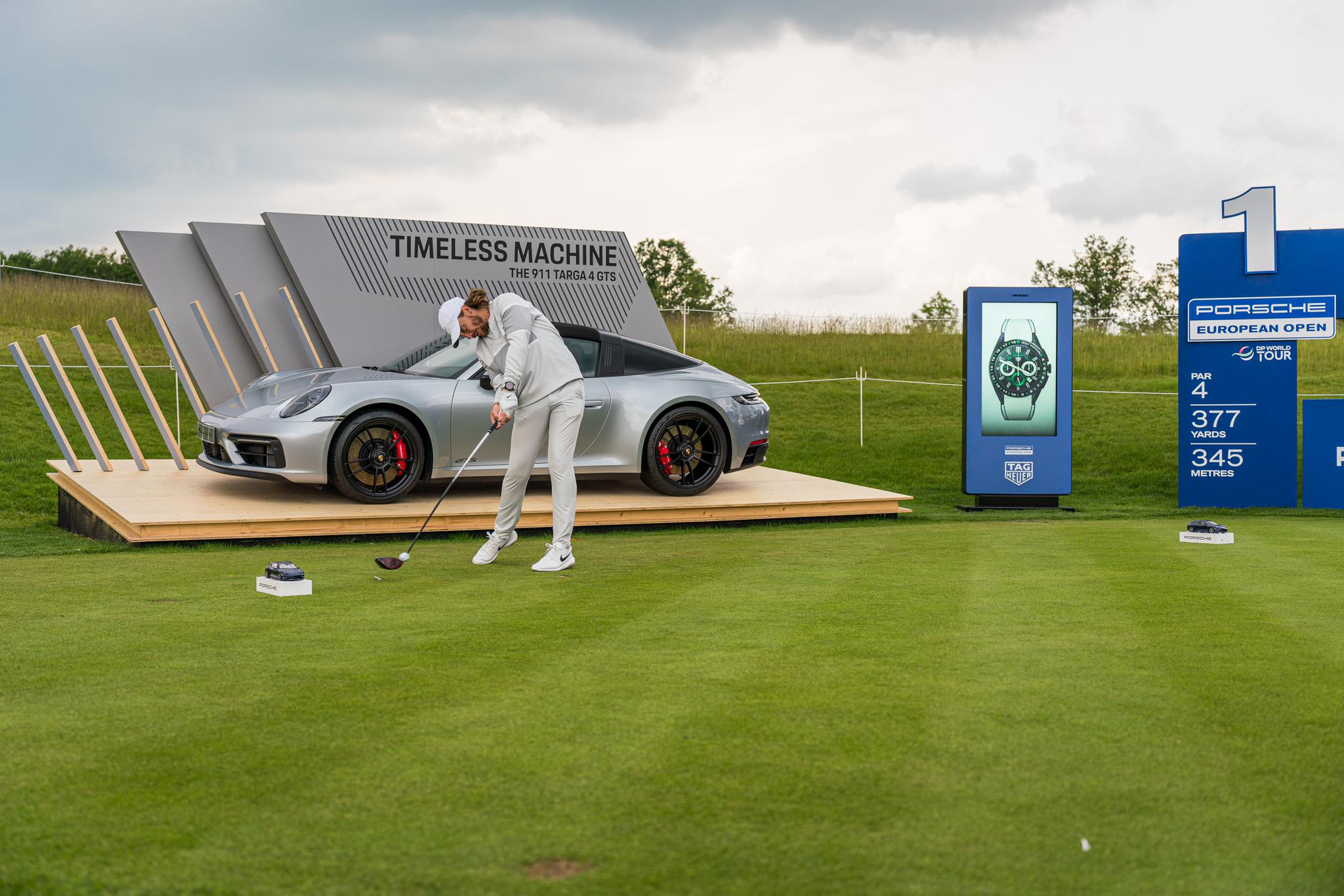

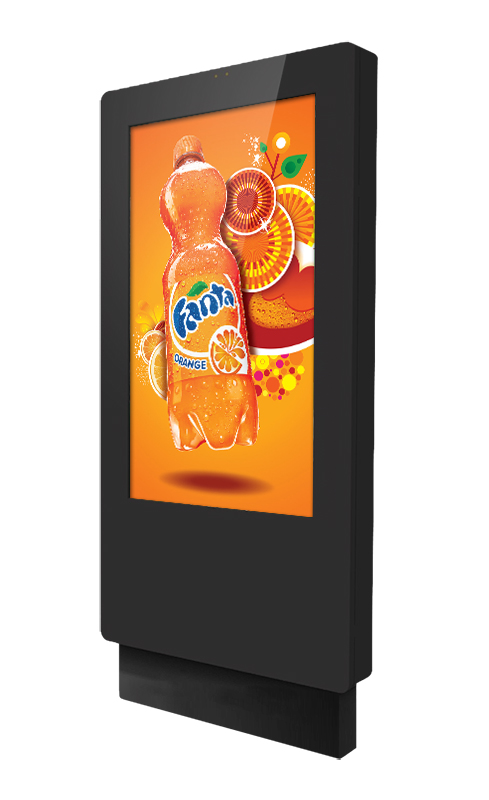

Outdoor Freestanding Digital Posters
(43" - 65") Other sizes available on request
Stunning outdoor totems; perfect for any weather conditions
2500cd/m²
2500cd/m² Brightness
Weather Proof
Weather Proof
Vandal Proof
Vandal Proof
temperature control system
Smart Temperature Control System
steel enclosure
Steel Enclosure
Anti Reflective Glass
Anti Reflective Glass
Easy Maintenance
Easy Maintenance
ambient light sensor
Ambient Light Sensor

removable base
Removable Base
24/7 Usage
24/7 Usage
Plug and Play
Plug and Play
Network product
Network Upgrade Available
pcap touch
Touch Upgrade Available
Internal Locker
Internal Locker
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
outdoor freestanding digital posters outdoor freestanding digital posters
sunlight readable
Direct Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.

vandal proof
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.
digital signage water proof ip rated digital signage water proof ip rated
weather proof

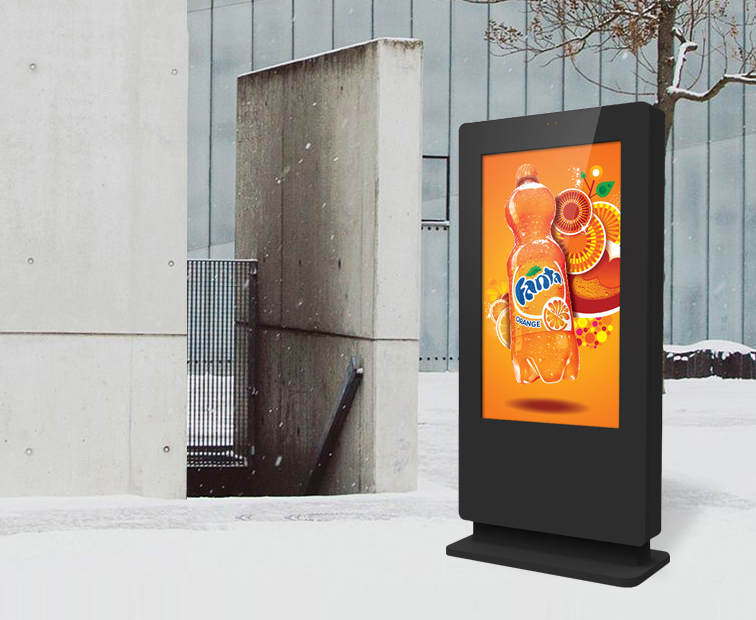

Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof overmoulded AV connectors.


easy maintenance

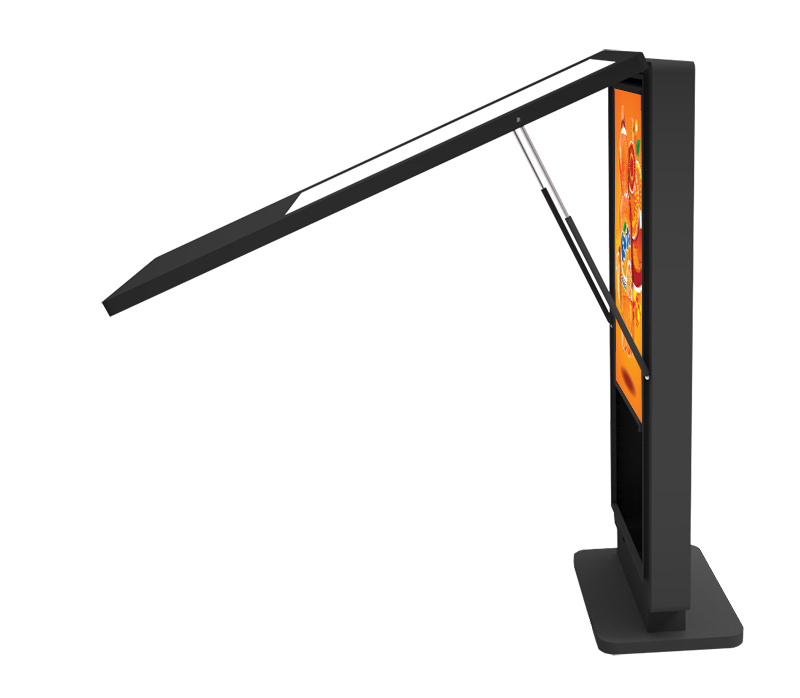

Easy Maintenance
Should you need to run the screen from another source, such as a small sized third party media player or PC, there is a small secure internal locker in which to place your device.

temperature control
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.

inyernal locker
Internal Locker
Should you need run the screen from an external source, there is space to fit a PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.
anti reflective glass
Anti-Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.
plug and play
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.

4k compatible

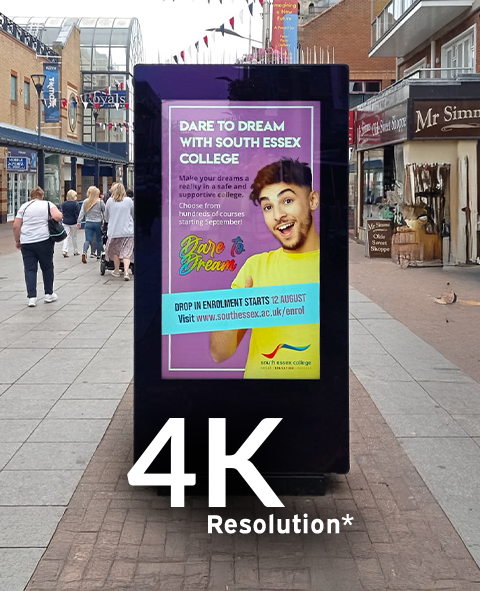

4K Compatible*
With four times the resolution of Full HD, get amazing picture quality for a truly immersive viewing experience when using HDMI.

network upgrade
Optional Network Upgrade
For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.

customisation
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

*65" and above only

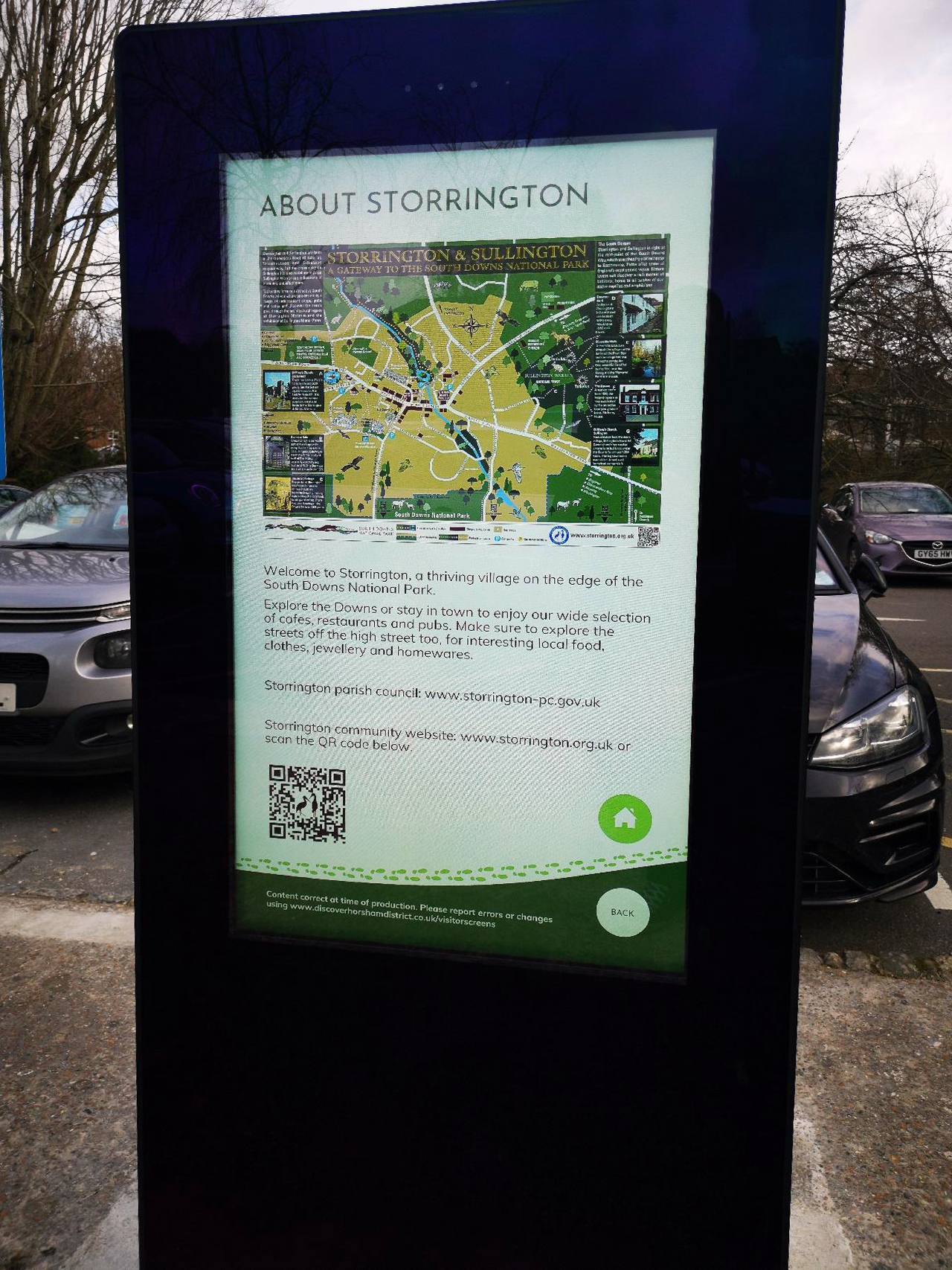

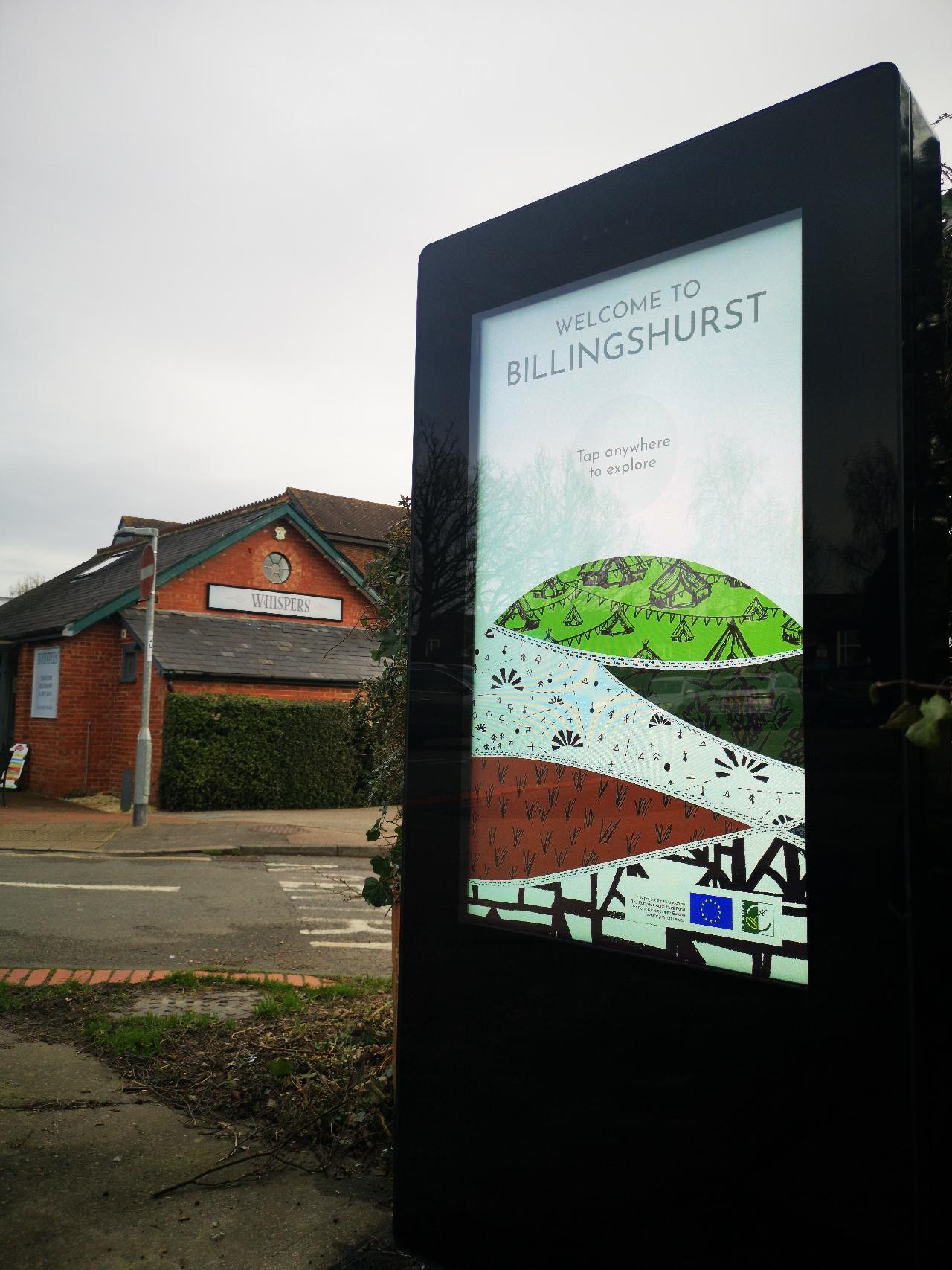

Outdoor PCAP Freestanding Multi Touch Screen Poster
outdoor pcap touch screen
pcap touch screen
PCAP Touch Screen
State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.

no ghost touch
No Ghost Touch
The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.

Full Specification
43 Inch - OT43E4

Resolution

1080x1920

Display Area

942x529.7

Unit Size

1920x790x204

Footprint

809x500

Net Weight

130kg

Gross Weight

155kg

Power Consumption (w)

TBC
49 Inch - OT49E5

Resolution

1080x1920

Display Area

1079.8x610

Unit Size

1950x870x182

Footprint

890x500

Net Weight

166kg

Gross Weight

196kg

Power Consumption (w)

300
55 Inch - OT55F

Resolution

3840x2160

Display Area

1209.4x680.2

Unit Size

2032.5x960x203

Footprint

990x500

Net Weight

204Kg

Gross weight Weight

236Kg

Power Consumption (w)

400
65 Inch - OT65E4

Resolution

3840x2160

Display Area

1428.5x803.5

Unit Size

2235.3x1086x245

Footprint

1116x550

Net Weight

260kg

Gross Weight

340kg

Power Consumption (w)

680
75 Inch - OT75E4

Resolution

2160x3840

Display Area

927x1649

Unit Size

1180x2300x260

Footprint

1210x600

Net Weight

TBC

Gross Weight

TBC

Power Consumption (w)

750
Panel

Aspect Ratio

16:9

Brightness (cd/m²)

2,500

Viewing Angle

178°

Contrast Ratio

8000:1
AV Inputs

Video

HDMI, VGA
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Ingress Protection

IP65

Impact Protection

IK10

Operating Temperature

-20 °C to 50°C

Operating Humidity

10% - 80%

Storage Temperature

-30 °C to 60°C

Storage Humidity

5% - 90%
Computer Computer (OT43 and OT49)

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1080x1920

Internal Memory

6GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

2GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 5.1.1

Graphic Engine

OpenGL ES 1.1/2.0, OpenVG 1.1
Computer (OT55 and OT65)

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

3840x2160/2160x3840

Internal Storage

32GB

CPU

Rockchip RK3399 @1.8GHz

GPU

Mali-T860 MP4 @600MHz

RAM

4GB DDR3

USB

USB2.0 HOST (x2), USB3.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n/ac (Network version screen only)

OS

Android 10

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

AC Power Cable, Remote Control

Optional

Touch Screen Upgrade, Network Upgrade, Camera
Videos

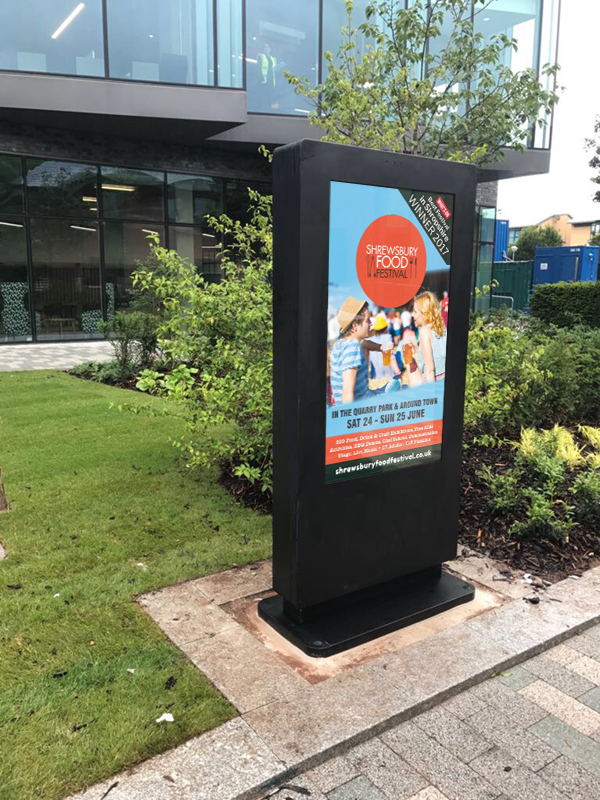

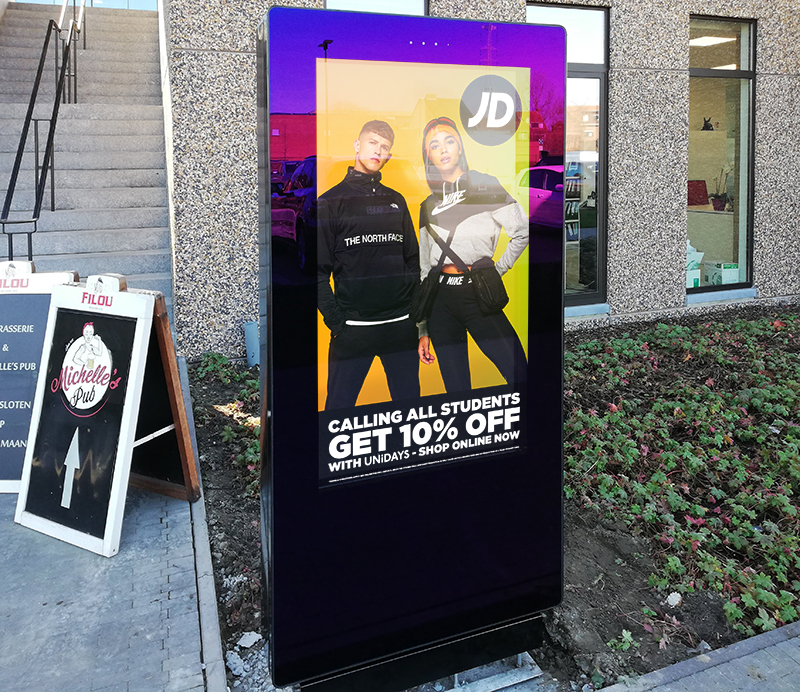

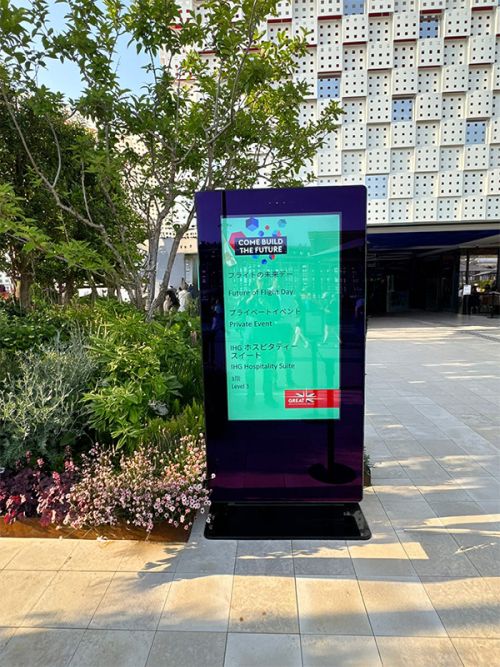

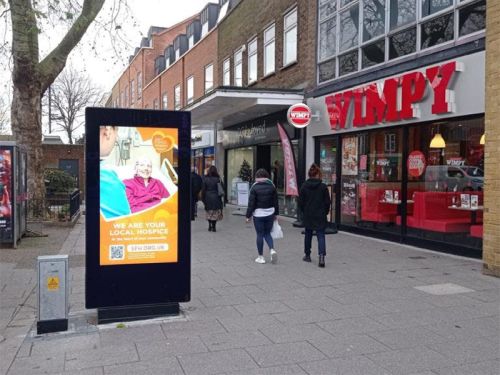

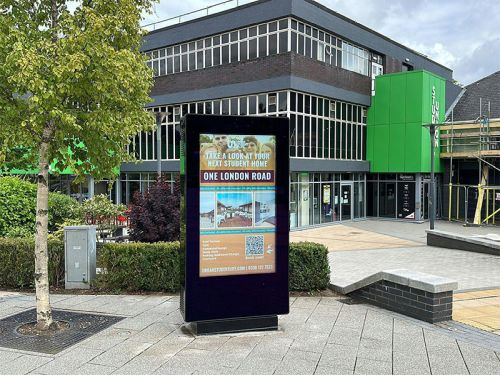

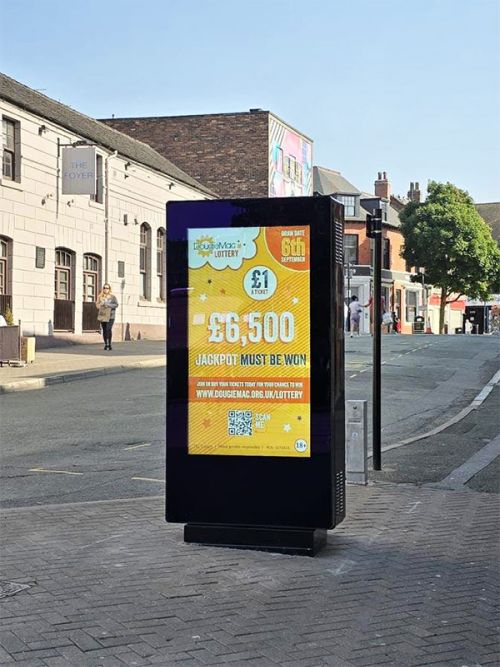

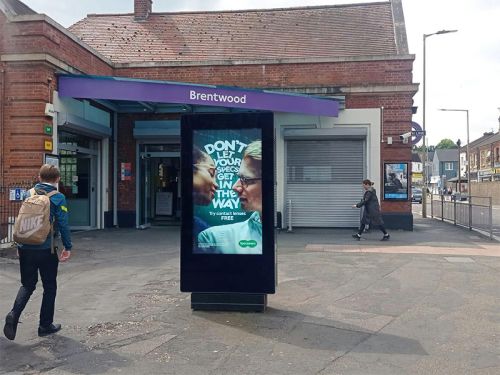

Case Studies
