10-Point PCAP Touch

Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.

24/7 Commercial Use

These displays are able to be in constant use 24/7 for over 70,000 hours thanks to their commercial grade LCD panel, media player and other components. They also have no external buttons or controls to prevent tampering.

Surface Plasma Treatment

A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.

450cd/m² IPS Panel

Thanks to the commercial grade IPS technology, these panels are designed to accurately display image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientations.

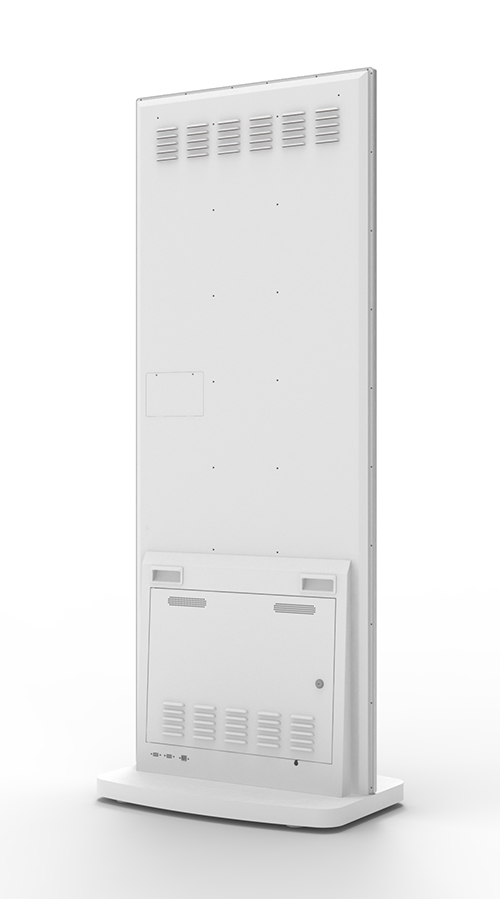

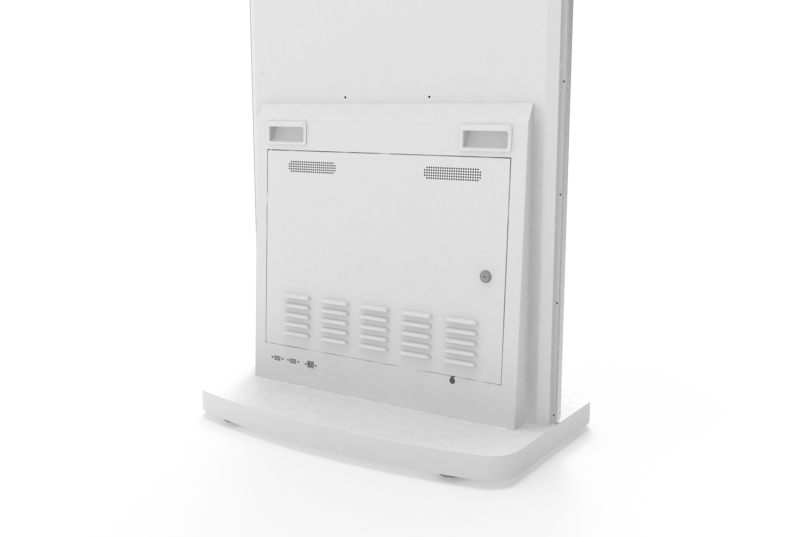

Internal Locker

Having a lockable compartment in the rear of the display with space to fit a small PC or media player means running the screen from an external source is easy – simply use the HDMI or VGA and 5mm audio inputs. This device can be powered from inside the locker with no need for additional power cables.

Easy Manoeuvrability

Thanks to the lightweight design, integrated castors and recessed rear handles, these displays offer a portable solution that can be easily be moved around. For more permanent installations, the retractable feet can be used to keep the display in place.

Built-In Speakers

Take your digital signage solution to the next level by adding an audio element using the two integrated slimline speakers.

Touch Content Management System

You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

Specification

Full Specification

50 Inch

55 Inch

50 Inch L50HD9-T

Display Area

603x1072

Unit Size

1843.1x665.6x41.2

Package Size

1950x900x600

Footprint

665.6x500

Net Weight (kg)

Gross Weight (kg)

Power Consumption (w)

>115

55 Inch L55HD9-T

Display Area

681.4x1210.6

Unit Size

1911.5x744x41.2

Package Size

2020x900x600

Footprint

744x500

Net Weight (kg)

69.5

Gross Weight (kg)

Power Consumption (w)

>155

Panel

Resolution

1080x1920

Aspect Ratio

16:9

Brightness (cd/m²)

450

Viewing Angle

178°

Contrast Ratio

5000:1

Colour

16.7M

Touch

Touch Technology

PCAP

Touch Points

Glass Hardness

7H minimum

AV Inputs/Audio

Video

HDMI, VGA

Audio Input

Audio Socket (3.5mm)

Speaker Type

10W, 4Ω (x2)

Power

Input Voltage

AC110~240V (50Hz~60Hz)

Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 55°C

Operating Humidity

10% to 80%

Storage Humidity

10% to 80%

Computer

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

Internal Storage

8GB eMMC

USB

1 x USB (OTG/HOST), 1 x USB (HOST)

LAN

100M/1000M Ethernet

Wi-Fi

802.11b/g/n/ac

Bluetooth

Bluetooth 4.2

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Other

No accessible buttons or controls

Accessories

Included

Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial

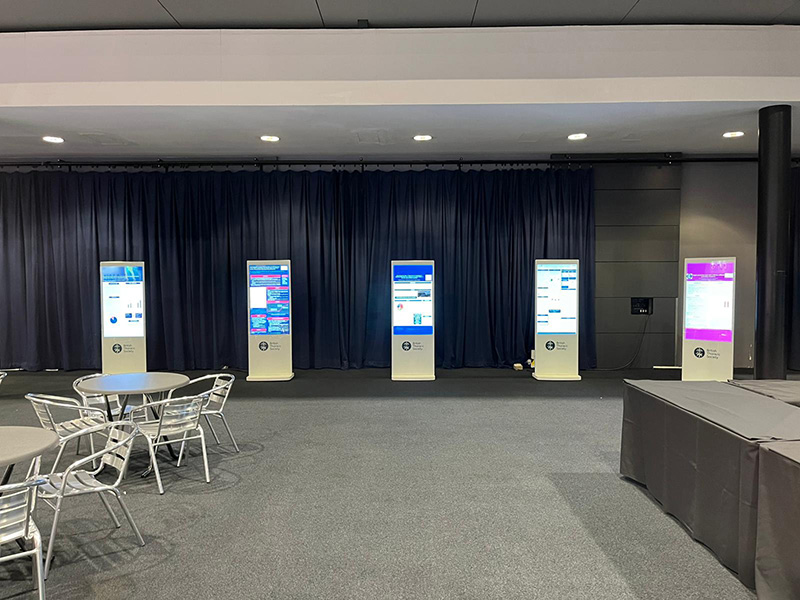

Gallery

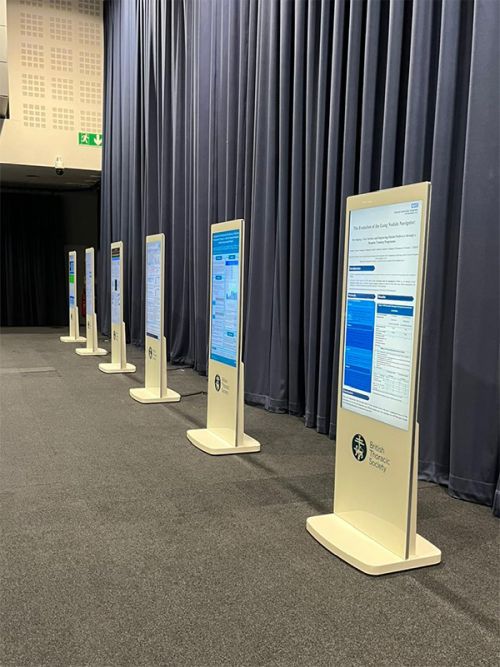

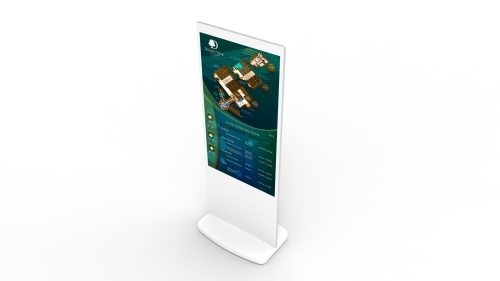

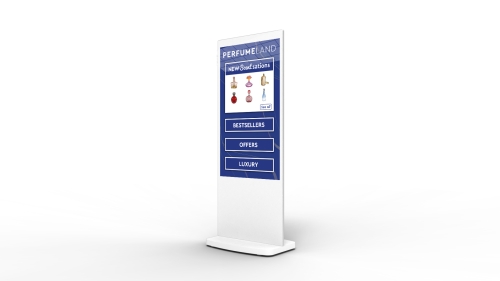

digital signage screens touch screen freestanding pcap poster

Videos

Downloads

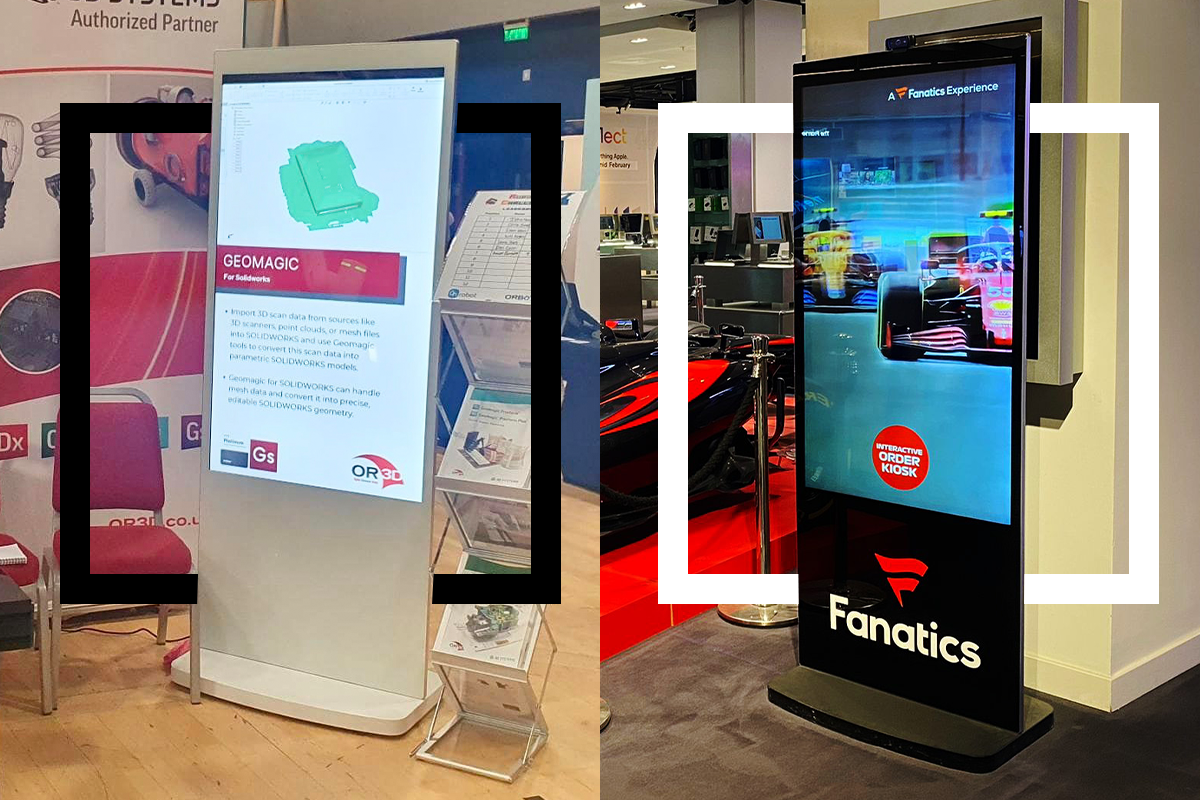

Spec Sheet - Black Version

50" Freestanding PCAP Touch Screen Posters - Spec Sheet

55" Freestanding PCAP Touch Screen Posters - Spec Sheet

Technical Drawings

50" Freestanding PCAP Touch Screen Posters - Technical Drawing

55" Freestanding PCAP Touch Screen Posters - Technical Drawing

Photos

Freestanding PCAP Touch Screen Posters - Images
